UltraHeat S2 Series

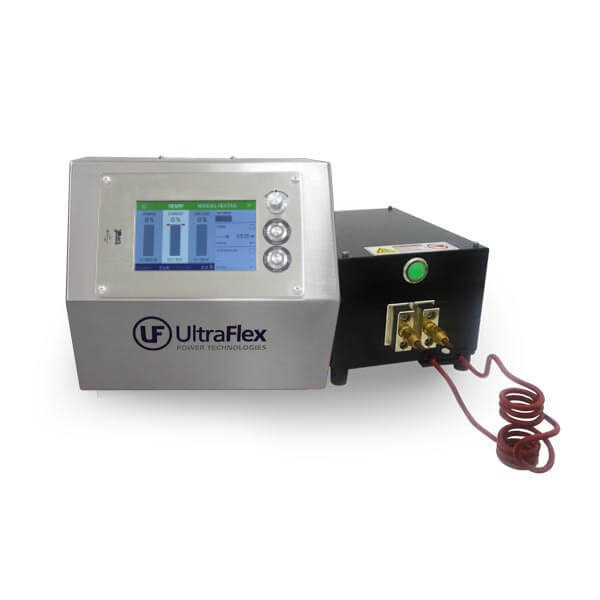

UltraHeat S Series are compact and efficient 2kW induction heaters that operate with a water-cooled or air-cooled remote heat station. The state-of-the-art induction heaters utilize the latest switching power supply technology and adaptive digital phase control to operate in a wide frequency range.
- Compact – can fit any space
- Durable design
- Easy to maintain and service
- Wide range load impedance matching
- Configurable tank capacitance
STANDARD FEATURES
- Output regulation – Voltage, Power, Current
- Limits setting – Current, DC Volts, Output Volts, Power, Frequency
- Compact air-cooled power supply design with automatic fan control
- Operator controls – Selectable: Automatic, Remote or Local
- Multiple user programs and programmable parameters
- Capable of delivering full power in the specified frequency range (see Specifications tables)
- Variable ratio output isolation transformer for load matching of a wide range of loads and coils
- Power control from 1% to 100% in 1% increments
ADVANCED OPTIONS
- Advanced 5” Color LCD touch panel
- Digital I/O Interface board – Remote Start/Stop
- External power control input: 0-10V or 4-20mA
- Temperature monitoring & control with K type thermocouple
- Temperature regulator for standard IR sensor input
- Serial Interface: RS-485
- Data logging and remote diagnostics
● Standard ○ Optional
| Power Supply Model | SM-2/200 0UPT-030-230 | SMT-2/200 0UPT-030-230 | SHT-2/400 0UPT-035-230 |
| Output kW | 2.0kW at 230VAC, 1.0kW at 110VAC | 2.0kW at 230VAC, 1.0kW at 110VAC | 2.0kW at 230VAC, 1.0kW at 110VAC |
| Frequency kHz | 30-200 | 30-200 | 100-400 |
| AC Line Volts (50/60Hz) | 110/230±10% | 110/230±10% | 110/230±10% |
| Line Phases | 1 | 1 | 1 |
| Compact air cooled power supply | ● | ● | ● |
| Auto tuning to variety of loads and coils | ● | ● | ● |
| Control panel | Standard | 5” LCD Touch | 5” LCD Touch |
| User programs | 5 | 10 | 10 |
| Digital I/O & Analog Power Control | ○ | ● | ● |
| Temperature control with IR Sensor and K Thermocouple Input | – | ○ | ○ |
| Cycle Energy Monitor | – | ○ | ○ |
| Serial Interface: RS-485 | – | ○ | ○ |
| Data logging | – | ○ | ○ |
| Weight Lb (kg) | 11 (5) | 11 (5) | 11 (5) |
| Dimensions Inch (mm) WxDxH | 9.8” x 8.5” x 9.3” (250 x 215 x 235) | 9.8” x 8.5” x 9.3” (250 x 215 x 235) | 9.8” x 8.5” x 9.3” (250 x 215 x 235) |
| Compatible Heat Stations | HS-4W | HS-4W | HS-4W |
| Heat Station Model | HS-4W (1ACC-030-160-02) water-cooled |
| Cable Length between Power Supply and Heat Station: Std / Max Ft (cm) | 6 (183)/ 30 (914) |
| Dimensions Inch (mm) WxDxH | 7.1” x 9.3” x 6.5” (180 x 236 x 165) |
| Weight Lb (kg) | 8.7 (4) |
| Cooling requirements water system quoted upon request | water (external) |
| Min. Cooling Water, GpM (LpM) | 0.5 (2.0) |
| Inlet Water T° (max), F (°C) | 95° (35°) |
Power supply:
- RS-485 interface for remote computer monitoring, control, and diagnostics
- External power control input: 0-10 V or 4-20 mA
- External Controls – Start/Stop operation, External Fault
Heat Station:
- External Controls – Start/Stop/Foot Switch
| Equipment | Description | Part Number |
| Custom Coil | Custom Coil designed and manufactured for customer’s application. | |
| WCA-1000-02 | Water Cooling System 3.0 kW, 230 VAC,1-ph | 1ACC-900-100-00 |
 RCP-03 | External E-stop box with 16 ft leads | 1ACC-725-530-00 |
 FS-01 | Foot Switch Assembly | 1ACC-777-500-00 |
| ACC-01 | Output Coil Adapter | 1ACC-754-560-00 |
| ACC-02 | Output Adapter Blocks with 1-4 NPTF | 1ACC-030-001-XX |
| IR-XX | Temperature Control and Monitoring Systems |
Common questions about the UltraHeat SM Series induction heating power supplies, including the SM-2/200, SMT-2/200, and SHT-2/400 models.
Can I use an External Control Panel with the UltraHeat SM Series?
Yes. UltraFlex offers optional External/Remote Control Panels for all SM Series models, allowing you to operate the system from a distance. This is useful in automated production lines or when the power supply is mounted inside a cabinet. The panel provides full access to power control, program selection, and system status.
What type of thermocouple does the SM Series use?
The SMT and SHT models support optional temperature monitoring using a Type K thermocouple, which covers a measurement range from −200°C to 1,260°C. This enables closed-loop temperature control for repeatable heating processes. An IR sensor input is also available as an alternative temperature measurement method.
Is there a serial interface option for system integration?
Yes. The SMT and SHT models offer an optional RS-485 serial interface for integration with PLCs, SCADA systems, and other automation controllers. This enables remote monitoring, data logging, and process diagnostics from a central control system. The base SM-2/200 model does not include this option.
Which heat stations are compatible with this power supply?
The UltraHeat SM Series is compatible with the HS-4AN, HS-4W, and HS-5W heat stations. Your choice of heat station depends on the application — coil size, part geometry, and required heating pattern. Both water-cooled and air-cooled configurations are supported. Our application engineers can recommend the best combination for your process.
Can I use 0–10V or 4–20mA for external power control?
Yes. The SM Series supports both 0–10V analog and 4–20mA current loop inputs for external power control via the optional Digital I/O Interface board. These are standard industrial signal types, making integration with existing PLCs and process controllers straightforward. On the SMT and SHT models, Digital I/O comes standard.
What is the frequency range of the UltraHeat SM Series?
The SM-2/200 and SMT-2/200 operate at 30–200 kHz, while the SHT-2/400 covers 100–400 kHz. All models deliver full rated power across their entire frequency range. The system automatically tunes to the optimal frequency based on the coil and workpiece combination, eliminating manual adjustment.
How many user programs does the SM Series support?
The base SM-2/200 supports 5 user programs, while the SMT and SHT models offer 10 user programs with multiple programmable parameters each. Programs store complete heating profiles — power level, time, temperature limits — making changeover between different applications quick and repeatable.
What are the cooling water requirements?
The SM Series heat stations require a minimum water flow of 2 L/min (0.5 GPM) with inlet pressure between 3 bar (45 PSI) and 6 bar (90 PSI). We recommend using deionized or distilled water to protect internal components and extend system life. See our water quality recommendations for more details.
