Induction Wire Heating

Induction Wire Heating2018-07-23T11:08:30+00:00

Induction Heating Wires

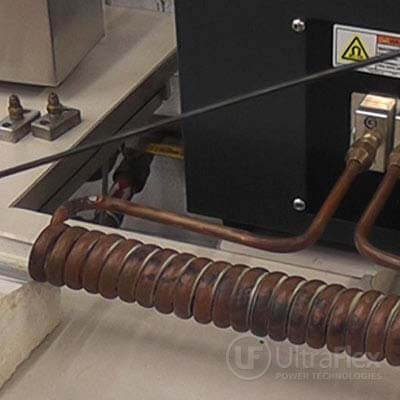

induction wire heating process

Objective

Induction Wire Heating

The purpose of this test is to heat 0.093″ (2.36mm), 0.265″(6.73mm) and 0.274″ (6.95mm) dia steel wire to 600°F (315°C) at 2 feet (60.96cm) per minute.

Recommended Equipment
The recommended equipment for this test is the UPT-SM2/200.  For increased production rates the UPT-SM5/200 or higher can be used.

Key Parameters

Temperature: 600°F (315°C)

Power: 0.69kW – 1.37kW

Time: 6 – 15 seconds

Results and Conclusions:

The wires were heated with less than 2kW of power to 600°F (315°C) with an Ultraflex lab coil in 6 to 15 seconds.  The time to temperature will vary based on the wire size and it can be lowered by optimizing the coil design to fit the individual wire sizes.

Pictures

Video

VIDEOS AVAILABLE UPON REQUEST

Request information or contact us about this application. Reference info: Application Note 3463-4893
