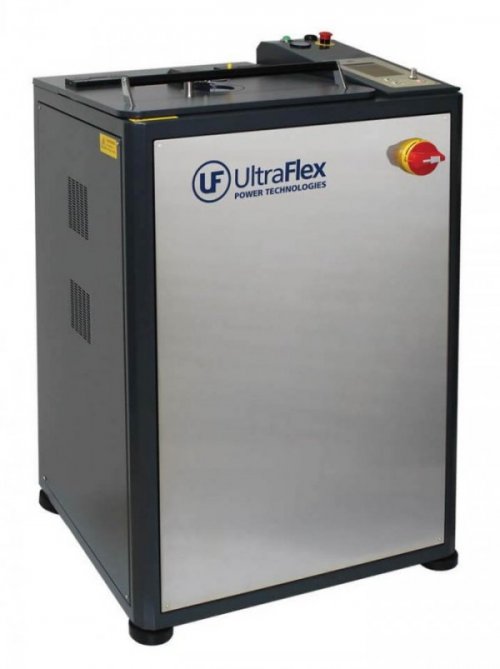

SuperCast J

SuperCast J is an advanced universal casting machine which utilizes the patented Rotating Coil System (RCS). The RCS continues to melt the metal while spinning and injecting. This way, the system maintains the molten metal’s viscosity during casting and prevents premature solidification due to coil lifting and injection delays. The unique feature guarantees perfect casting results with high-temperature, fast solidifying metals such as Platinum, Palladium and Titanium.

Our popular high-end Supercast J models are fully automatic and can cast with excellent quality and repeatability all precious and non-precious metals and alloys. The powerful motor with high acceleration and speed guarantees very low porosity and high compacting of the metal. Advanced high-frequency induction heating generator provides fast and efficient melting and mixing of all metals in grains, ingots, scrap or powder form.

The modern LCD Touch control panel features an easy to use interface and provides intuitive and informative visual feedback. It displays the measured process parameters, receives user input, sets various parameters and saves multiple programs. It also displays diagnostic and warning messages.

Induction casting machine for jewelry

FEATURES

  • Fully automatic (one button) or manual casting cycle
  • Built-in vacuum pump and inert gas (argon or nitrogen) circuit
  • Coil rotation with arm and flask – metal is continuously heated and injected while the coil rotates
  • Accurate temperature reader with advanced temperature controller and metal emissivity regulation
  • Allows casting with precious stones in place
  • Advanced, highly efficient induction heating technology
  • Modern 5” full color LCD touch control panel
  • Multiple user programs with many pre-programmed settings
  • Special programs for titanium casting (Supercast J5 models)
  • Easy to install and very simple and safe to operate
Supercast Lite J4
0UPT-017-350
Supercast Plus J5-T
0UPT-017-450
Power (max) 4.0 kW 5.0 kW
AC Line, (50/60Hz), 1 Phase 230 ±10% 230 ±10%
Melting Temperature (max) 2000 °C 2000 °C
Crucible Capacity 200g Pt (50g Pt min),
170g Au, 80g Ag
200g Pt (50g Pt min), 170g Au
80g Ti (min 10g Ti – ingot), 80g Ag
Crucible Volume Graphite insert 10 cm3
Ceramic 30 cm3
Graphite insert 10 cm3
Ceramic 30 cm3
Flask Size (max), DxH 90 mm x 90 mm 90 mm x 90 mm
Water Cooling System included included
Vacuum Pump included included
Auto-Cast Programs No included
Titanium casting program No Yes
LCD touch control panel No Yes
Weight 155 kg (342 Lb) 175 kg (385.8 Lb)
Dimensions, LxWxH 64 cm x 67 cm x 105 cm
(25.2” x 26.4” x 41.3”)
64 cm x 67 cm x 105 cm
(25.2” x 26.4” x 41.3”)
  • Improved energy efficiency
  • Higher degree of controllability
  • Increased repeatability
  • Low maintenance requirements
  • Increased productivity
Part Number Description SuperCast J4 SuperCast J5
Graphite crucible for induction casting machine

2DET-015-000-KA

Graphite crucible
Material: ceramic with graphite.
Suitable for: Gold, Silver, Brass, Copper, Aluminum, Bronze
Max Capacity: 170 g Gold.
Average life: about 30 castings
Volume: 10 cm3
Max Temperature of the metal: 1300C
1 1
Ceramic crucible for Pt for induction casting machine

2DET-015-000-KF

Ceramic crucible for Pt
Material: fused silica.
Suitable for: platinum and steel
Max Capacity: 200 g Pt.
Min Capacity: 40g Pt
Average life: about 30 castings
Volume: 30 cm3
Max Temperature of the metal: 1800C
1 1
Crucible for Ti for induction melting machine

2DET-015-000-KD

Crucible for Ti
Material: ceramic with zirconia.
Suitable for: Titanium, steel
Max Capacity: 80 g Titanium.
Min Capacity: 20 g Titatium
Average life: about 1 casting
Volume: 30 cm3
Max Temperature of the metal: 1600C
1
Pad (spacer) for Pt crucible for induction casting machine. Ultraflex Power Technologies.

2DET-017-450-OF

Pad (spacer) for Pt crucible 1

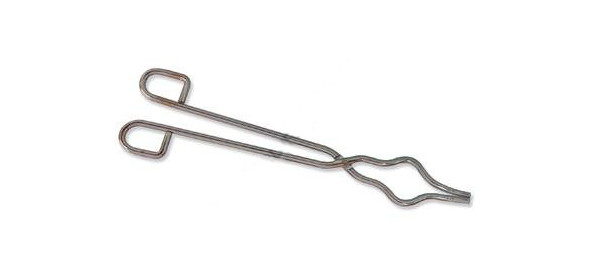

Crucible tongs for induction casing and induction melting machine

4HVM-000-101-00

Crucible tongs 1 1
Screwdriver system “ZERO” for induction casting and melting machine

4HVM-000-100-00

Screwdriver system “ZERO” 1 1
Anti vibration feet for induction casting and melting machine

4EAC-000-017-00

Casting machine anti vibration feet 1 1
T-allen key for induction casting machine

4EAC-000-028-00

T-allen key 5mm 1
Saddle pad for induction casting machine

2DET-017-500-GK

Saddle pad 1
Flask saddle 30mm for induction casting machine

2DET-017-500-PZ

Flask saddle 30 mm 1
Flask saddle 48mm for induction casting machine

2DET-017-500-QA

Flask saddle 48 mm 1
Flask saddle 63mm for induction casting machine

2DET-017-500-QB

Flask saddle 63 mm 1
Flask saddle 80mm for induction casting machine

2DET-017-500-QC

Flask saddle 80 mm 1
Flask saddle 48mm for induction casting machine

2DET-017-500-QH

Flask saddle 2inch 1
Flask saddle 63mm for induction casting machine

2DET-017-500-QI

Flask saddle 2 3/8inch 1
Flask saddle 63mm for induction casting machine

2DET-017-500-QK

Flask saddle 2.5inch 1
Flask saddle 80mm for induction casting machine

2DET-017-500-QJ

Flask saddle 3inch 1
Spacer for saddle L=70mm for induction casting machine

2DET-017-500-QD

Spacer for saddle L=70mm 1
Spacer for saddle L=75mm for induction casting machine

2DET-017-500-QE

Spacer for saddle L=75mm 1
Spacer for saddle L=80mm for induction casting machine

2DET-017-500-QF

Spacer for saddle L=80mm 1
Spacer for saddle L=85mm for induction casting machine

2DET-017-500-QG

Spacer for saddle L=85mm 1
