Induction Heating Beryllium Copper

Objective
Heat a 0.4’’(10.16mm) heat length of beryllium copper to 1440°F (782°C) for annealing

Equipment
SM-5/200
HS-4W

Material
• 1450°F (787°C) Tempilaq

Test I

Key Parameters
Power: 2.01 kW
Temperature: 1450°F (787°C)
Time: 6 sec

Test II

Key Parameters
Power: 1.49 kW
Temperature: 1450°F (787°C)
Time: 2 sec

Results and Conclusions

After 2nd test SH-2/350 is recommended to be able to get the full 2 kW while tuning.

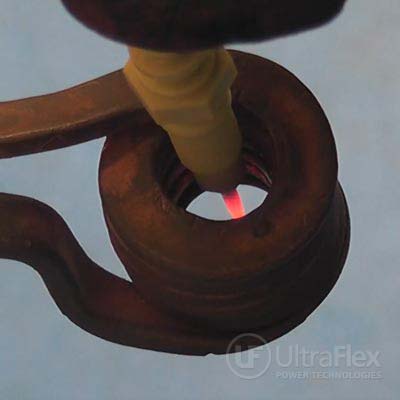

Pictures

Video

Request information or contact us about this application. Reference info: Application Note 3464-5318
