UltraMelt TLT-2P

UltraMelt TLT-2P is a compact tilting station for melting up to 2kg Platinum.
It is designed to work with 10 kW and 15 kW induction generators.

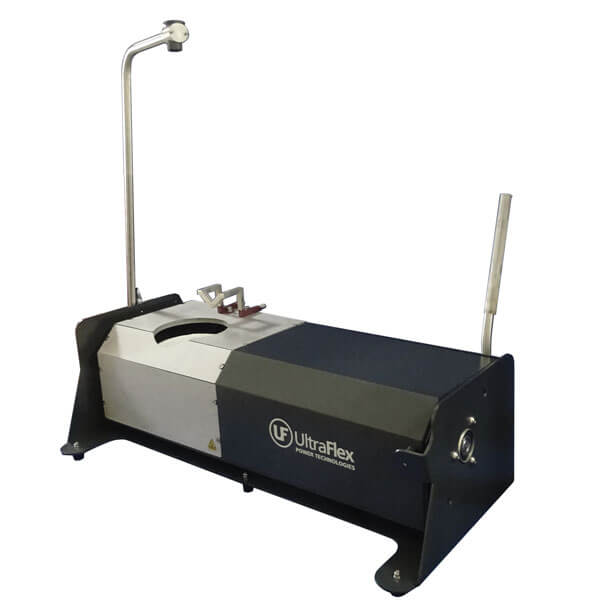

UltraMelt TLT-2P - Compact Tilting station for melting


  • Manual tilting mechanism
  • Infrared Temperature reader (optional)
  • Crucible size 71 mm x 142 mm
  • Compatible power generators – 10 kW and 15 kW depending on your production rate
UltraMelt TLT-2P
Output Frequency 50 kHz – 200 kHz
AC Line, (50/60Hz), 3 Phases 380 V/480 V ±10%
Crucible Capacity 2 kg Pt (scrap) 5 kg SS
Crucible Volume 240 cm3
Melting Temperature (max) 2000 °C
Melting time 12 min with 15 kW at ~100kHz
Cooling Requirements
water system quoted upon request
Water (external)
Temperature measurement Infrared Pyrometer (optional)
Weight 15 kg (33 lb)
Dimensions, LxWxH 78 cm x 40 cm x 30 cm
(30.7” x 15.7” x 11.8”)
Compatible Power Supply W10, W10E, W15
  • Tilting Induction Melting Furnace provides improved energy efficiency vs traditional furnaces and kilns
  • Better process control with high degree of controllability and repeatability
  • Safe and convinient pouring of molten metal with tilting capability
  • Low maintenance requirements
  • Increased productivity
Equipment Description Part Number
TS-03 IR Temperature Sensor with Stand 1ACC-016-350-00


manual platinum tilting melter
manual platinum tilting melter side
