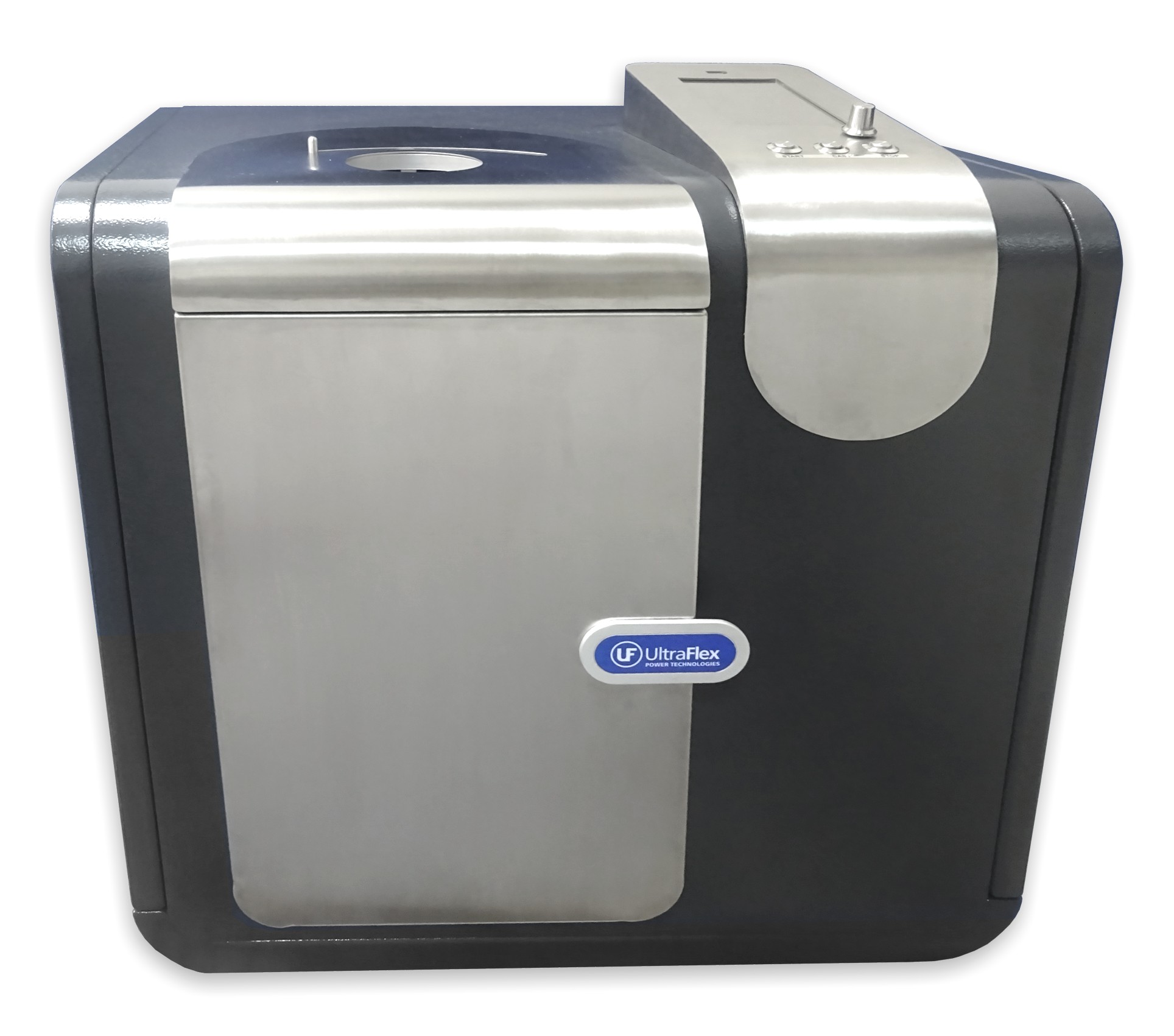

UltraCast Pro

1. Q: Does the display have touch-screen functions?

A: Yes, our display has built-in touch-screen functions.

2. Q: What is the height of the machine?

A: Yes, you need to select it via pressing once and then adjust.

3. Q: Do you use centrifugal force in the casting process?

A: No, we don’t use Centrifugal Force and thus there is no lost metal.

4. Q: Can I use a pre-set program with your machine?

A: Yes, you can edit and save pre-defined process parameters in our machine.

5. Q: How many programs can I have saved at one time?

A: You save up to 8 programs at once.

6. Q: Is a Water Cooling System included with the machine?

A: No, there is no Water Cooling System included with the machine. It can be quoted upon request.

7. Q: Is there a minimum water flow requirement?

A: Yes, the minimum water flow requirement is 2L/min(0.5GPM).
Please note, that there is also a requirement for the pressure – minimum differential pressure of the cooling water 3Bar(45PSI), maximum input pressure 6Bar(90PSI).

8. Q: What is the size of the control panel?

A: The control panel is a Modern 5” full color LCD touch control panel.
