Temperature Control and Monitoring

Turn Key Non-Contact Temperature Control and Monitoring Options for UltraFlex Systems

UltraFlex offers a variety of turn key IR temperature sensing and control systems to simplify and assist with your induction heating application control. These pyrometers are tested and configured to work with the UltraFlex Power Induction Systems.

Ultraflex Part Number

Model / Description

TC-01

1ACC-700-120-00

Temperature Controller Unit

Stand alone for use with Thermocouples or IR sensors
4-20mA or 0-10V output
Dry contact relay programable to work with built in alarm feature
Allows induction system to reach and hold desired temperature
Auto-tune feature allows for automatic adjustment of output to minimize over and under shooting of temperature
Optional data logging software

IGAR 6 SMART Assembly

1ASM-700-216-00

IGAR 6 IR Pyrometer Assembly, 100-2000C (212-3632F) one color, 250-2550C (482-4622F) dual color,
including connection cable

Very wide temperature range
One Color or Two-color Smart mode
Measurement of all types of surfaces, no emissivity adjustment needed
Reads through dust, smoke, or contamination
Can measure objects smaller than the spot size
2 mm Spot size at 210mm with a laser sight
Response time – 2mS adjustable to 10S

BR6A

1ASM-700-221-00

Mounting Bracket, Dual axis

For use with IGAR 6 Smart Series Pyrometers
Allows vertical and horizontal angle position adjustment
Used to mount pyrometer sensor to a base

IGAR 320 Assembly

1ASM-700-215-00

IGAR 320 IR Pyrometer Assembly, 300-1300C (570-2372F), with connection cable

Two-color/Dual wavelength Ratio pyrometer
Specifically suited for measurements of metal surfaces, metal oxides and ceramics
Emissivity adjustment is not needed
3mm Spot size at 300mm with LED targeting
Includes 2m (6.5ft) cable to Ultraflex equipment

ISR 320 Assembly

1ASM-700-217-00

ISR 320 IR Pyrometer Assembly, 700-1700C (1292-3092F), with connection cable

Two-color/Dual wavelength
Specifically suited for measurements of metal surfaces, metal oxides, and ceramics
Emissivity adjustment is not needed
3mm spot size at 300mm with LED targeting
Response time 10mS adjustable to 10 S
Includes 2m (6.5ft) cable to Ultraflex equipment

BR320

1ASM-700-205-00

Mounting Bracket

For use with IGAR320 & ISR320 Pyrometers
Allows vertical and horizontal angle position adjustment
Used to mount pyrometer sensor to a base.

M322-13 Assembly

1ASM-700-281-00

M322-13 IR Pyrometer, 350-1300C (662-2372F), with connection cable

Two-Color/Dual wavelength
Very accurate, no emissivity adjustment required, good for measuring the temperature of metals with high emissivity surfaces and changing color, through smoke or glass
Adjustable focus with 0.8mm to 7.8mm Spot size at 340mm to 3000mm with a laser sight
1ms response time, adjustable to 10ms
Includes 2m (6.5ft) cable to Ultraflex equipment

M322-18 Assembly

1ASM-700-280-00

M322-18 IR Pyrometer Assembly, 500-1800C (932-3272F), with connection cable

Two-Color/Dual wavelength
Very accurate, no emissivity adjustment required, good for measuring the temperature of metals with high emissivity surfaces and changing color, through smoke or glass
Adjustable focus with 0.8mm to 7.8mm Spot size at 340mm to 3000mm with a laser sight
1ms response time, adjustable to 10ms
Includes 2m (6.5ft) cable to Ultraflex equipment

M322-18F Assembly

1ASM-700-282-00

M322-18F IR Pyrometer Assembly, 500-1800C (932-3272F), with fiber optic and connection cable

Two-Color/Dual wavelength
Very accurate, no emissivity adjustment required, good for measuring the temperature of metals with high emissivity surfaces and changing color, through smoke or glass
Fiber optic cable with miniature fiber head
Adjustable focus with 1.2 mm to 6 mm Spot size at 120mm to 500mm with a laser sight
1ms response time, adjustable to 10ms
Includes 2m (6.5ft) cable to Ultraflex equipment

BRM322

1ASM-700-204-00

Mounting Bracket for induction heating (R series)

Mounting Base

For use with M322 Pyrometers
Swivel, light duty
Used to mount R series pyrometers to a base

CSL-SF Assembly

1ASM-700-212-00

CSL-SF IR Pyrometer Assembly, -30-1000C (-20-1832F), with connection cable

Single color, long wavelength
Integrated controller into an optic head
Economical solution for measuring the temperature of coated metal or non-metallic, non-reflective surfaces
Response time adjustable – 150mS
Manual, adjustable emissivity (0.1 – 1.1)
4mm Spot size at 200mm with laser sight
Includes 2m (6.5ft) cable to Ultraflex equipment

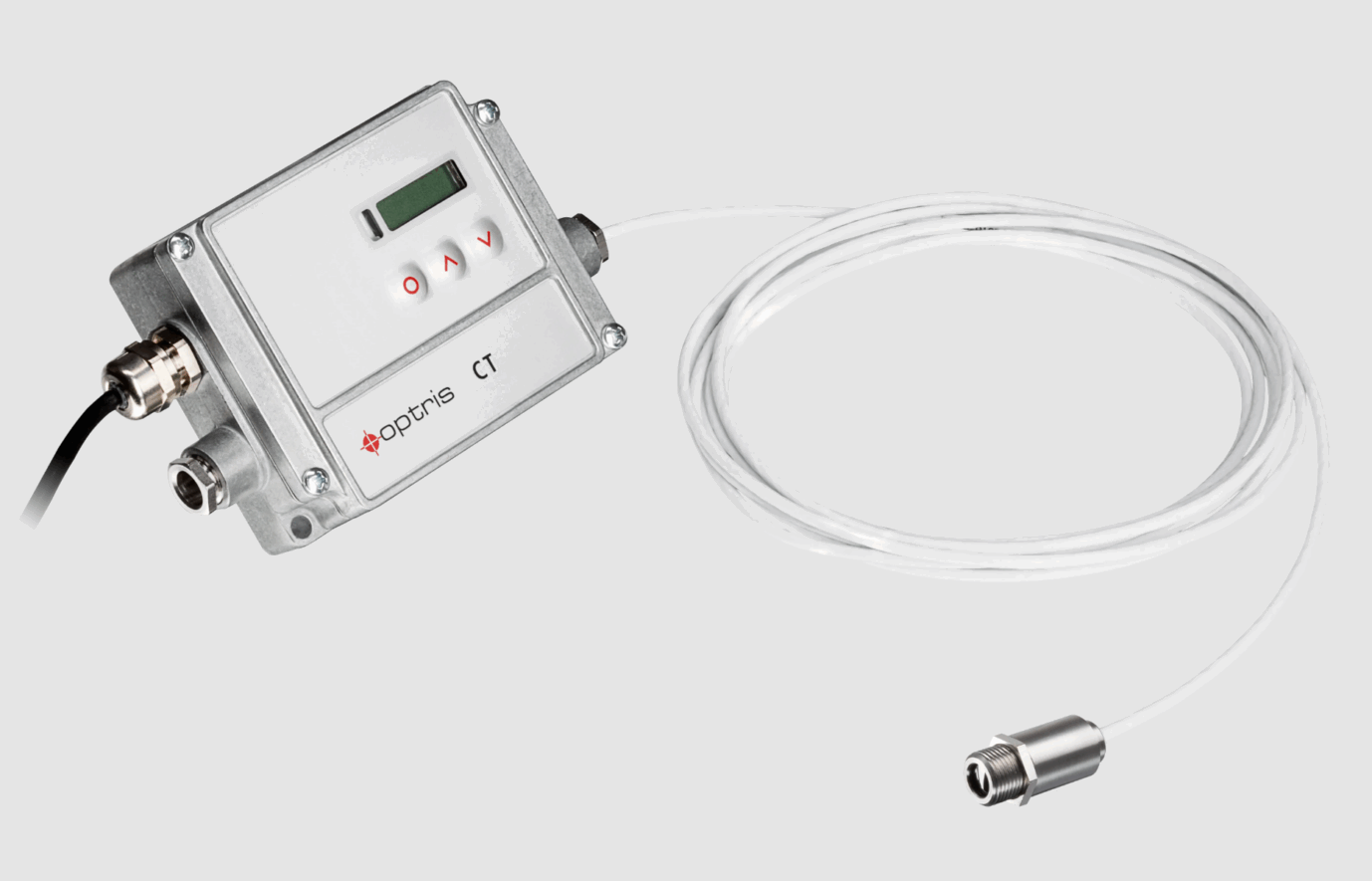

CTLG Assembly

1ASM-700-218-00

CTLG IR Pyrometer Assembly, 250-1650C (482-3002F), with connection cable

Single color, medium wavelength (5 µm)
Controller with digital display & 3m fiber cable
Economical solution for measuring the temperature of glass surfaces with good accuracy
Response time (90% signal) – 80mS
Manual, adjustable emissivity (0.1 – 1.1)
17 mm Spot size at 1200 mm with a laser sight
Includes 2m (6.5ft) cable to Ultraflex equipment

CTLM-2H Assembly

1ASM-700-223-00

CTLM-2H IR Pyrometer Assembly, 385-1600C (725-2912F), with connection cable

Single color, short wavelength, 1.6µm
Controller with digital display & 3m fiber cable
Economical solution for measuring the temperature of metal surfaces with good accuracy
Response time – 1mS
Manual, adjustable emissivity (0.1 – 1.1)
1,5 mm Spot size at 450 mm with laser sight
Up to 85 °C ambient temperature without cooling
Includes 2m (6.5ft) cable to Ultraflex equipment

CTLM-1H Assembly

1ASM-700-219-00

CTLM-1H IR Pyrometer Assembly, 800-2200C (1472-3992F), with connection cable

Single color, short wavelength
Controller with digital display & 3m fiber cable
Economical solution for measuring the temperature of metal surfaces with good accuracy
Response time – 1mS
Manual, adjustable emissivity (0.1 – 1.1)
3.7 mm Spot size at 1100 mm with laser sight
Includes 2m (6.5ft) cable to Ultraflex equipment

CTLM-3H Assembly

1ASM-700-222-00

CTLM-3H IR Pyrometer Assembly, 100-600C (212-1112F)

Single color, short wavelength, 2.3µm
Controller with digital display & 3m fiber cable
Economical solution for measuring the temperature of metal surfaces with good accuracy
Response time – 1mS
Manual, adjustable emissivity (0.1 – 1.1)
2.3 mm Spot size at 200 mm with a laser sight
Up to 85 °C ambient temperature without cooling
Includes 2m (6.5ft) cable to Ultraflex equipment

CTLM-3H Assembly

1ASM-700-284-00

CTLM-3H IR Pyrometer Assembly, -50-975C (-120-1470F)

Single color, short wavelength, 2.3µm
Controller with digital display & 3m fiber cable
Economical solution for measuring the temperature of liquids with good accuracy
Response time – 1mS
Manual, adjustable emissivity (0.1 – 1.1)
2.75 mm Spot size at 200 mm with laser sight
Up to 85 °C ambient temperature without cooling
Includes 2m (6.5ft) cable to Ultraflex equipment

BRCTL

1ASM-700-206-00

Mounting Bracket

For use with CSL-SF, CTLG and CTLM Pyrometers
Used to mount pyrometer sensor to a base
Allows vertical and horizontal angle position adjustment

CSmi2WM Assembly

1ASM-700-242-00

CSmi2WM IR Pyrometer Assembly, 385-1600C (725-2912F), with connection cable

Single color, short wavelength, 1.6µm
Very compact with integrated controller in cable
Economical solution for measuring the temperature of metal surfaces with good accuracy
Response time – 10 mS
Manual, adjustable emissivity (0.1 – 1.1)
8mm Spot size at 200mm with sighting aide
Includes 2m (6.5ft) cable to Ultraflex equipment

BRCSmicro

1ASM-700-207-00

Mounting-Bracket-for-O-CSmicro-series-new

Mounting Bracket, single axis

For use with CSmi2WM Pyrometers
Used to mount pyrometer sensor to a base
Allows either vertical or horizontal angle position adjustment

STRM-2LSF Assembly

1ASM-700-283-00

STRM-2LSF IR Pyrometer, 250-1000C (482-1832F), including connection cable

Two-color/Dual wavelength
Very accurate, no emissivity adjustment required, good for measuring the temperature of metals with high emissivity surfaces and changing color, through smoke or glass
Adjustable focus with 7.3mm at 300mm with laser sight
Includes 2m (6.5ft) cable to Ultraflex equipment

BRCTL

1ASM-700-208-00

Mounting Bracket

For use with STRM Pyrometers
Used to mount pyrometer sensor to a base
Allows vertical and horizontal angle position adjustment

Achieving and maintaining the desired temperature of the heated part is a critical aspect of most induction heating processes. The UltraFlex systems can be controlled in several ways to ensure accurate temperature control and monitoring:

TEMPERATURE CONTROL METHODS

Pre-programmed steps – All Ultraflex products feature multiple programs that can be entered and used for ensuring good temperature control. Each program has multiple steps where time, power level, or ramp rate can be entered to achieve an accurate temperature profile. Though this method has no indication or measurement or the actual temperature, it is acceptable for a lot of applications where good position control and repeatability can be ensured.
Temperature Controllers – When the process requires accurate monitoring and control of the temperature, a Temperature controller unit must be used. Ultraflex offers the following options:
- Integrated Temperature control module – Selected Ultraflex products come with a built-in temperature control module that can be used for accurate temperature control. The module can be accessed, and control parameters set through the User interface of these products.
- Temperature Controller unit (TC-01) – Ultraflex offers a turn-key external Temperature controller unit. This unit is designed to easily integrate with all Ultraflex induction systems and IR pyrometers. It is suitable for rapid temperature changes or when more complex thermal profiles must be achieved. They can operate with all standard IR sensors and thermocouples. They also come with a USB port for easy setup or download to a PC.
- Advanced Temperature Control – Ultraflex offers custom engineered solutions for demanding temperature control processes or multi-point temperature control, monitoring and recording are required. Optional software packages for data logging and acquisitions are also available.

TEMPERATURE MEASUREMENT METHODS

Thermocouples – Depending on the application, thermocouples can be a viable option for induction heating. When a contact method of measurement is possible and the temperatures are usually below 1000C, the thermocouples can be a reliable and inexpensive choice. It must be noted that the thermocouples are metallic and could be affected by the electromagnetic field. For this reason, the placement of the thermocouples must be carefully selected, preferably outside of the induction field.
Non-contact Infrared Temperature Pyrometers – IR pyrometers can rapidly and accurately measure the temperature of an object without being in contact with it. They offer several advantages:
- Can measure much higher temperatures (3000C+)
- Fast response time
- Fast and accurate temperature reading
- Can be located outside of the RF field
- Reading is not affected by the RF field

IR PYROMETER TYPE SELECTION GUIDE

Wavelength Type	Wavelength Range	Measuring temperature of:
Long wavelength	8-14 µm	wood, paper, plastics, painted surfaces, and varnishes
Short wavelength	0.75-1.8 µm	metal surfaces, graphite, metal oxides, and ceramics
Medium wavelength	3.0-5.0 µm	flat glass, container glass, quartz tube, vehicle glass, and solar cells

Single/Dual color Type	Description
Single color	Require manual emissivity adjustment, so they are only accurate at the emissivity of the target they have been adjusted for. Not good for targets with changing emissivity or obstructed field of view. Good for basic process control and monitoring for repeatable processes (brazing, soldering). Good for low and sub-zero temperatures.
Two color/Dual wave	Two-color/Dual wave pyrometers are the most accurate systems. They have automatic emissivity compensation and are suitable for applications where parts emissivity changes significantly, targets have obstruction of view and when operating conditions include scale, severe temperature gradients or surface oxidation. They measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers. Advantages and benefits of these systems include the following: Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target. Independent of the emissivity of the target Compensate for changes in target emissivity due to scaling or oxidation. Can measure smaller target than sensor’s field of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV. Allow peak detection of moving targets within FOV The Two-color (Dual wave) systems are offered with fiber optic options to allow siting the IR sensor much closer to the target.

Single/Dual color Type

Description

Single color

Require manual emissivity adjustment, so they are only accurate at the emissivity of the target they have been adjusted for. Not good for targets with changing emissivity or obstructed field of view. Good for basic process control and monitoring for repeatable processes (brazing, soldering). Good for low and sub-zero temperatures.

Two color/Dual wave

Two-color/Dual wave pyrometers are the most accurate systems. They have automatic emissivity compensation and are suitable for applications where parts emissivity changes significantly, targets have obstruction of view and when operating conditions include scale, severe temperature gradients or surface oxidation. They measure temperatures from the ratio of radiation signals of two adjacent wavelengths as opposed to measuring the absolute intensity within one wavelength, as with one-color pyrometers. Advantages and benefits of these systems include the following:

Automatic compensation for viewing though dirty windows, dust and partial smoke between sensor and target.
Independent of the emissivity of the target
Compensate for changes in target emissivity due to scaling or oxidation.
Can measure smaller target than sensor’s field of view (FOV/Spot Size) i.e. measures weighted peak temperature within FOV.
Allow peak detection of moving targets within FOV

The Two-color (Dual wave) systems are offered with fiber optic options to allow siting the IR sensor much closer to the target.

Series	Description	Suitable For
R Series	Two color, high performance, adjustable focal distance and spot size, fast response time, precise laser targeting, integrated temperature display, optional software.	All metal surfaces (including high emissivity), Metal oxides, Molten metal, Graphite, Silicone Carbide, Quartz, Glass, Ceramics. Measures through smoke, dirt, or partial view.
L Series	Two color, high performance, compact size, integrated red laser targeting, optional Spot software.	All metal surfaces (including high emissivity), Metal oxides, Molten metal, Graphite, Silicone Carbide, Quartz, Glass, Ceramics.
AP Series	Smart mode – Dual-single color. Adjustable focal distance and spot size. Very wide temperature range. Fast response time, precise laser targeting, integrated temperature display, optional software.	All metal surfaces (including high emissivity), Non-metallic, Metal oxides, Molten metal, Graphite, Silicone Carbide, Quartz, Glass, Ceramics. Measures through smoke, dirt, or partial view.
OM Series	Single color, digitally adjustable emissivity, economical, controller with display, precision dual laser targeting, build in alarm.	Metals, Metal oxides, Molten metal, Graphite, Silicone Carbide, Ceramics.
OMC Series	Single color, low cost, miniaturized stainless steel measuring head, optimally suited for installation in limited spaces, monitoring and analyzing via connected smartphone or tablet.	Metals, Metal oxides, Molten metal, Graphite, Silicone Carbide, Ceramics.
ON Series	Single color, economical, compact size, small spot size, self-contained, equipped with laser aiming.	Wood, paper, plastics, painted surfaces, and varnishes.
OG Series	Single color, digitally adjustable emissivity, economical, controller with display, precision dual laser targeting, build in alarm.	Flat and container glass, quartz tube, vehicle glass, & solar cells.

Learn about Temperature Control in Induction Heating
