SuperCast D

Casts all dental alloys: precious and non-precious. Automatic frequency setting.

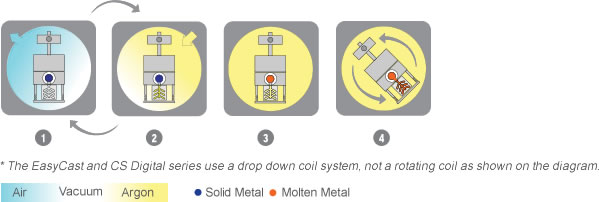

Patented RCS (Rotating Coil System) providing excellent casting and no death time due to coil lifting.

No delay time due to coil lift mechanism.

Metal injected in the liquid phase.

Highly efficient technology.

Low energy consumption.

Easy to install and simple to operate.

SuperCast D - induction dental casting machine. Casts all dental alloys: precious and non-precious

FEATURES

  • Coil rotation with arm and flask
  • Coil still heating during rotation
  • Metal injected in liquid phase
  • Accurate temperature reader with advanced thermo regulator
  • Metal emissivity regulation
  • Vacuum-Argon washing cycle
  • Advanced diagnostic features and error messages
  • Easy to use digital Control Panel with 10 user programs, 10 programmable parameters each
  • Casting with precious stones
  • Special program for automatic Titanium casting – only Supercast Plus D5
Supercast Lite D4
0UPT-017-350
Supercast Plus D5
0UPT-017-450
Absorbed Power kW (max) 4.0 5.0
AC Line Volts (50/60Hz) 230 ±10% 230 ±10%
Line Phases 1 1
Crucible Capacity 60g Cr/Co, Ni/Cr 80g Cr/Co, Ni/Cr or Ti
Flask Size mm (max) D=90 x H=90 D=90 x H=90
Max Melting 2000 C° 2000 C°
Cooling System Water-Internal Water-Internal
Weight Lb (kg) 342 (155) 385.8 (175)
Dimensions
Inch (cm) LxWxH
25.2” x 26.4” x 41.3″
(64 x 67 x 105)
25.2” x 26.4” x 41.3″
(64 x 67 x 105)
  • Improved energy efficiency
  • Higher degree of controllability
  • Increased repeatability
  • Low maintenance requirements
  • Increased productivity
Part Number Description SuperCast D4 SuperCast D5
Graphite crucible for induction casting machine

2DET-015-000-KA

Graphite crucible
Material: ceramic with graphite.
Suitable for: Gold, Silver, Brass, Copper, Aluminum, Bronze
Max Capacity: ~170 g Gold.
Average life: about 30 castings
Volume: 10 cm3
Max Temperature of the metal: 1300C
1 1
Anti vibration feet for induction casting and melting machine

4EAC-000-017-00

Anti vibration feet 1 1
Screwdriver system “ZERO” for induction casting and melting machine

4HVM-000-100-00

Screwdriver system “ZERO” 1 1
Crucible tongs for induction casing and induction melting machine

4HVM-000-101-00

Crucible tongs 1 1
Crucible for Ti for induction melting machine

2DET-015-000-KD

Crucible for Ti
Material: ceramic with zirconia.
Suitable for: Titanium, steel
Max Capacity: 80 g Titanium.
Min Capacity: 30g Pt
Average life: about 1 casting
Volume: 30 cm3
Max Temperature of the metal: 1600C
1
