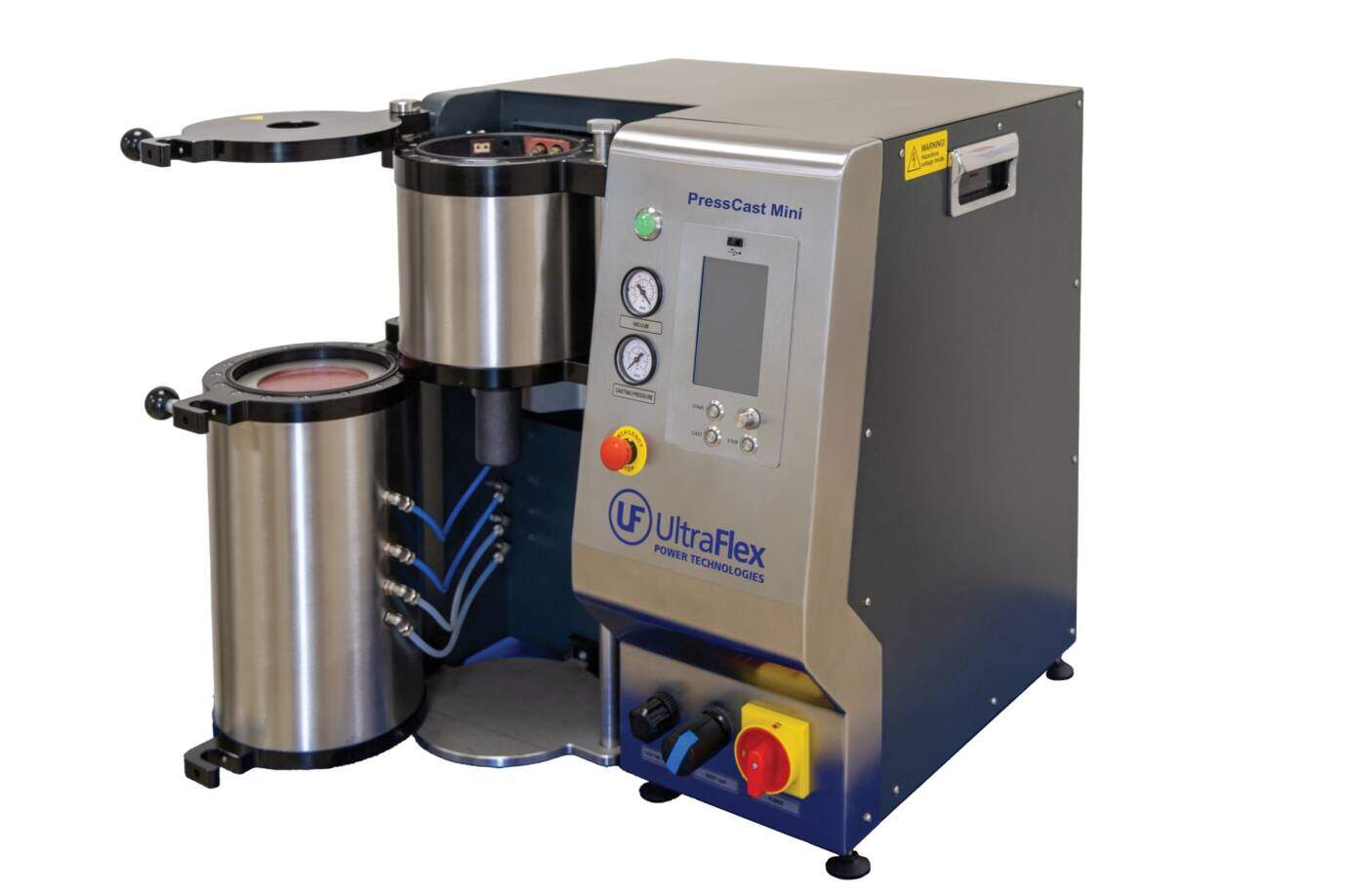

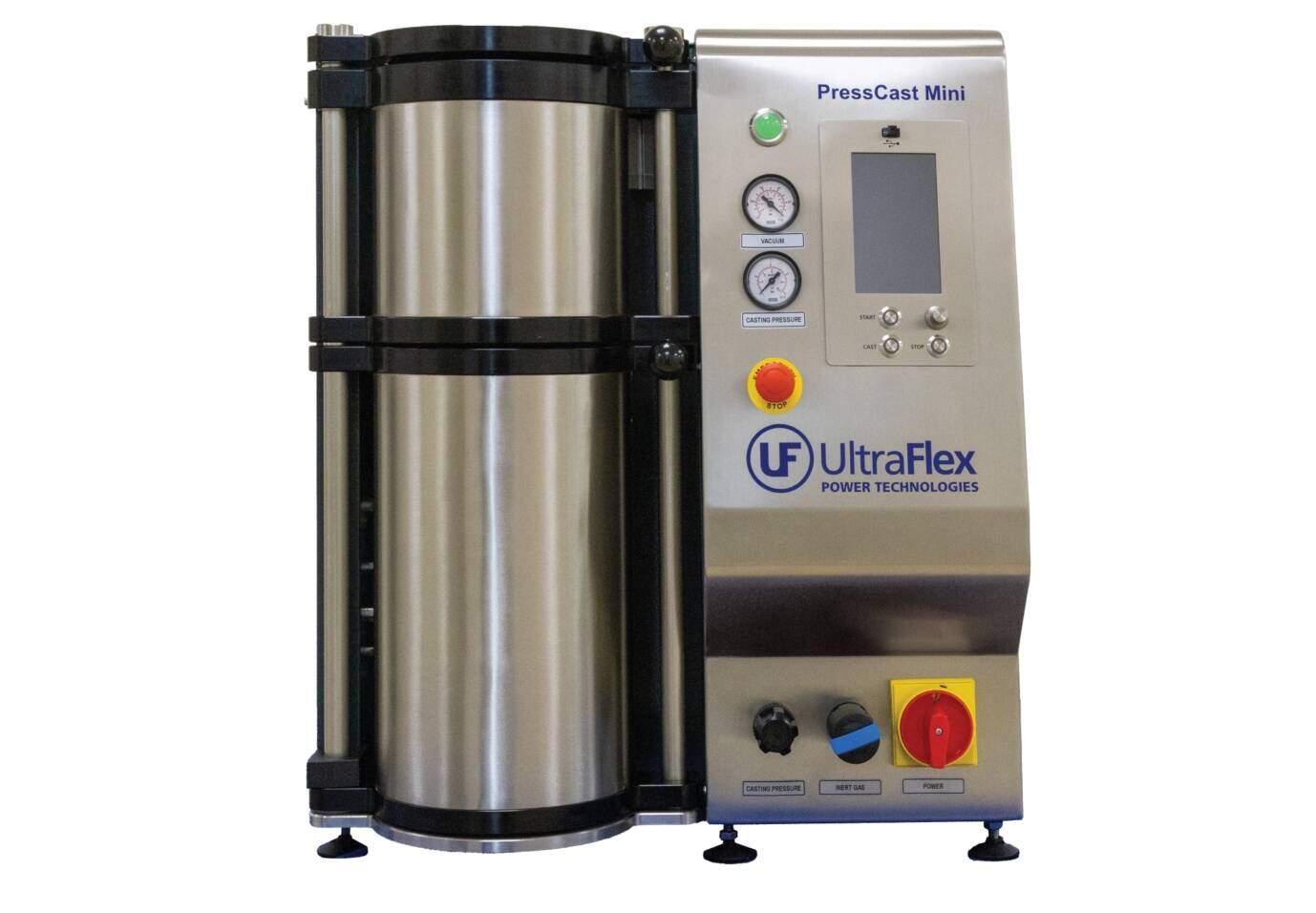

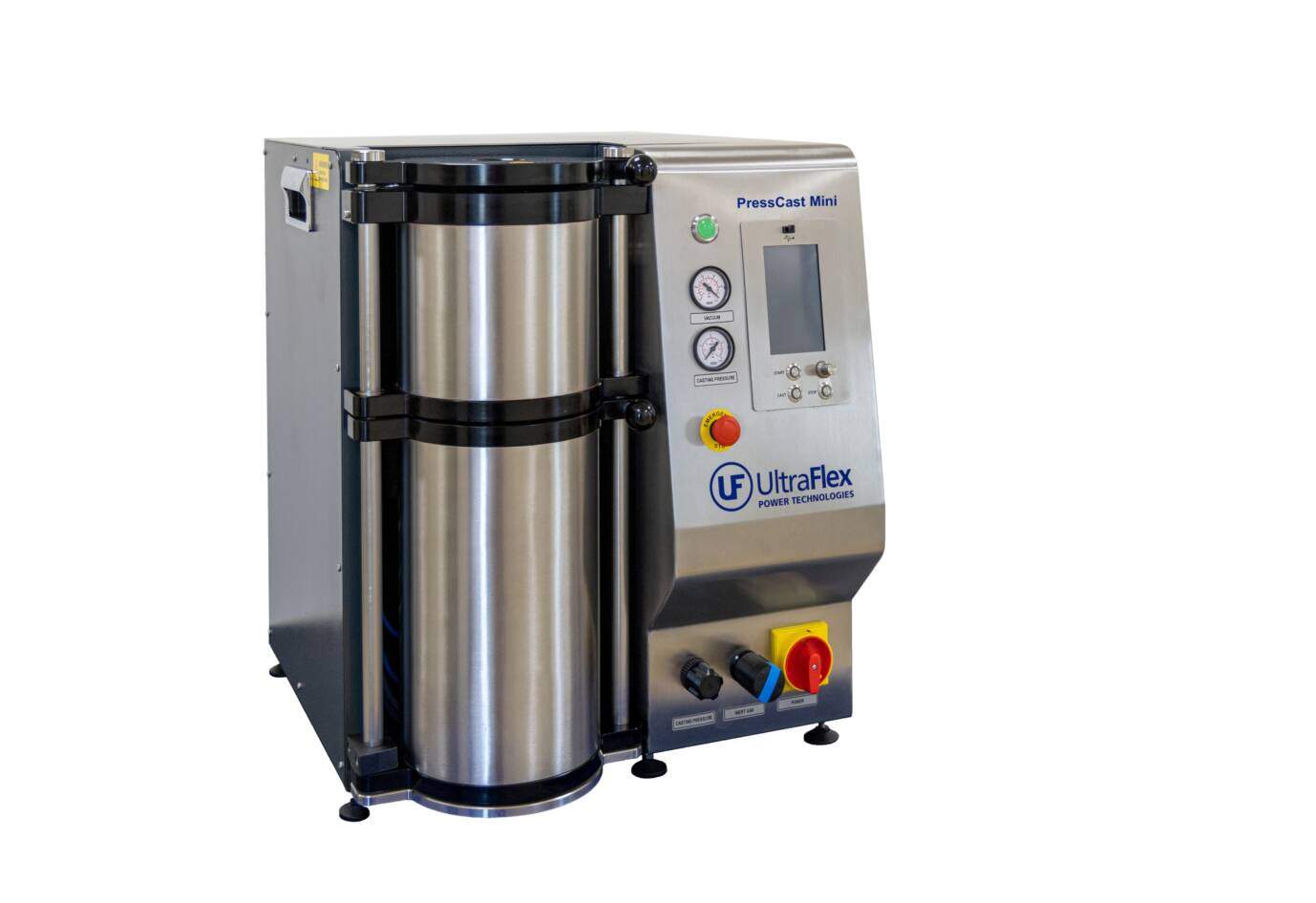

PressCast Mini: Low-Volume, Versatile Casting Systems for Professional Jewelers

The PressCast Mini is designed to meet the demands of small to medium scale jewelry manufacturers. Pris pressure-over vacuum casting system is versatile and capable of producing exceptional quality castings, including “stone-in-place” techniques for all low melting point metals and alloys such as gold, silver, brass, and more.

Optimal Performance with High Casting Pressure
Achieve flawless results with a high casting pressure of up to 2.5 bar (external vacuum pump required). This ensures the perfect filling of the finest details, making it ideal for intricate designs. The integrated thermocouple probe and temperature controller guarantee consistent casting quality and repeatability, every time.

Advanced Induction Heating Technology
Leverage the power of our advanced induction heating technology for fast and efficient melting. This system offers excellent mixing of molten metal through low frequency electromagnetic pulsing, enhancing the integrity and quality of your final product.

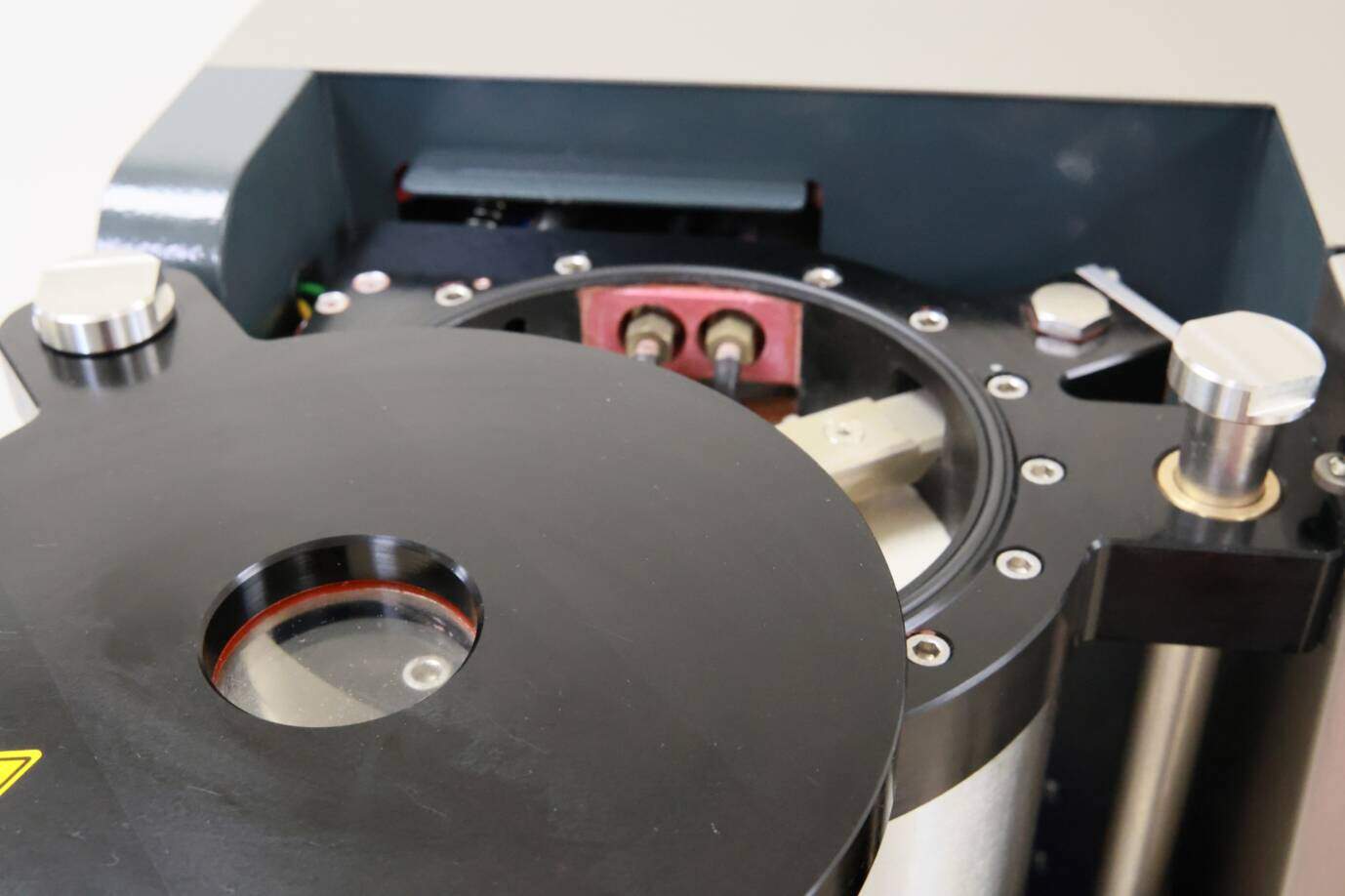

• Pneumatic chamber sealing allows a fast chamber purging cycle
• Pressure casting (2.5 bar) with manual flask lift.
• Uses perforated flasks with flange.

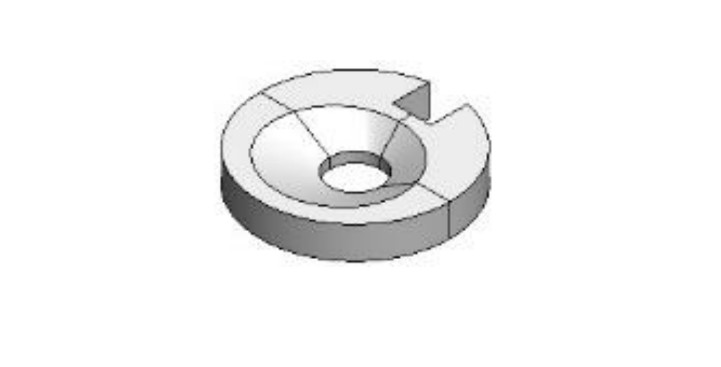

• Max Flask size: 4×8” with flange. Smaller diameter flasks could be used with special accessory rings.

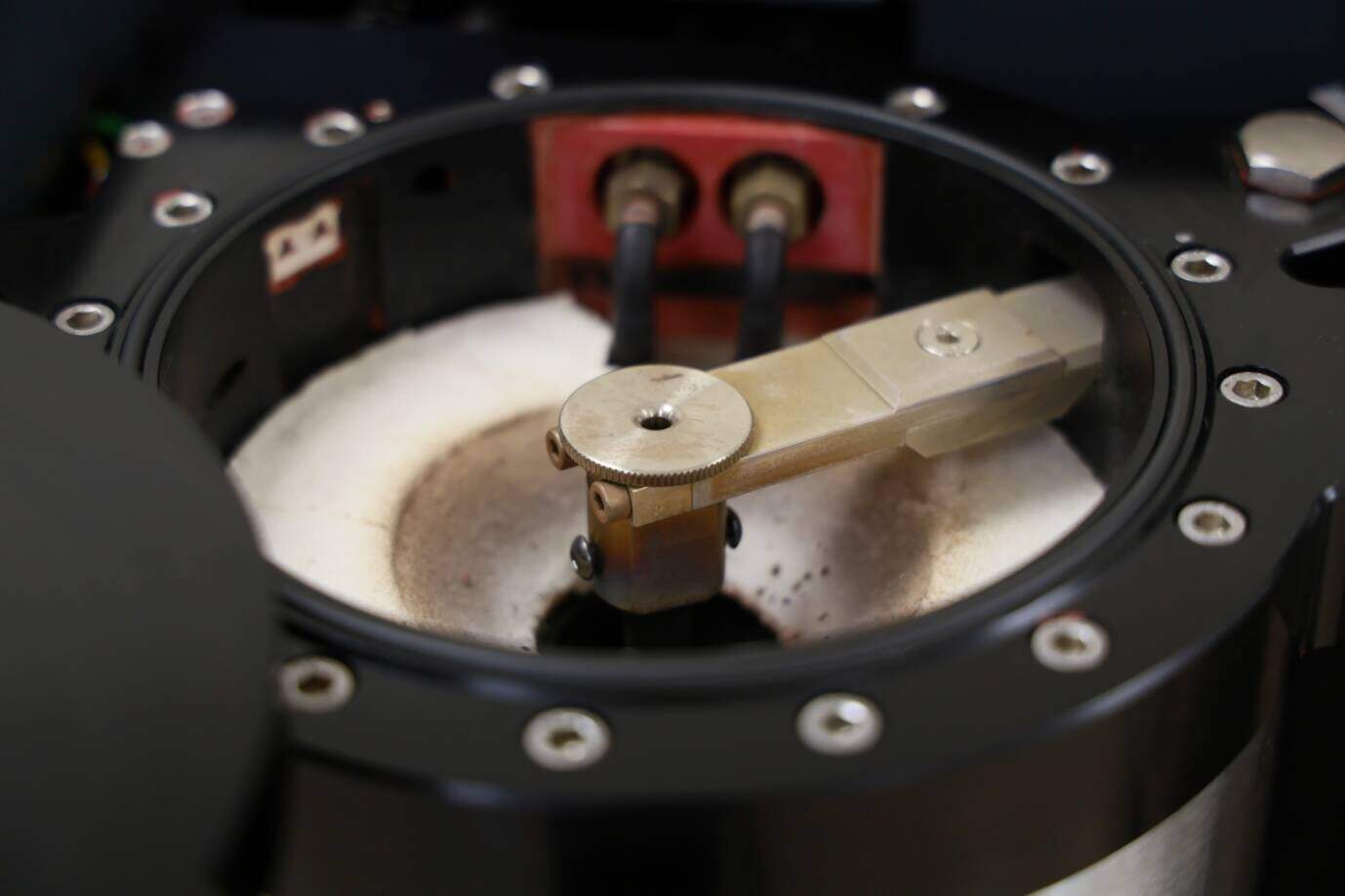

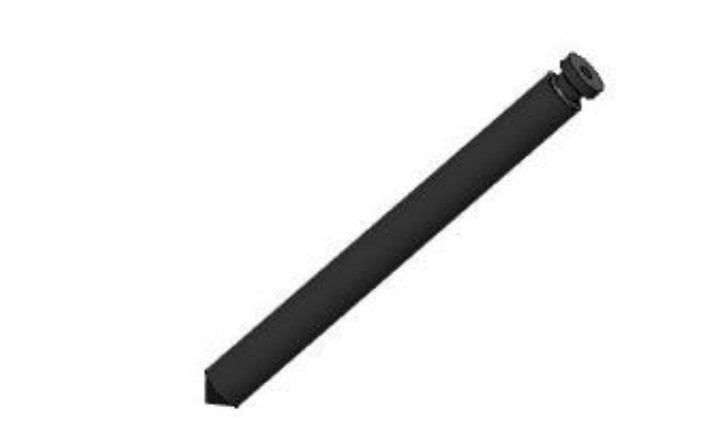

• Graphite stopper rod centrally positioned in the crucible.
• Accurate temperature control with a thermocouple embedded in the rod.
• Advanced LCD touch panel with multiple programs: 10 programmable cycles with 10 parameters per cycle.
• Argon required for casting: maximum 60 L at 2 bar pressure
