Soldering Copper to Brass

Objective:

Test: Soldering copper tubing to brass valves

Industry: HVAC

Materials: Copper and brass pipes

Equipment: W10/150, HS-15W

Power: 11 kW

Temperature: 932oF (500oC)

Time: 20 seconds

Coil: Coated custom-made coil. Visit our col library here

The Process:

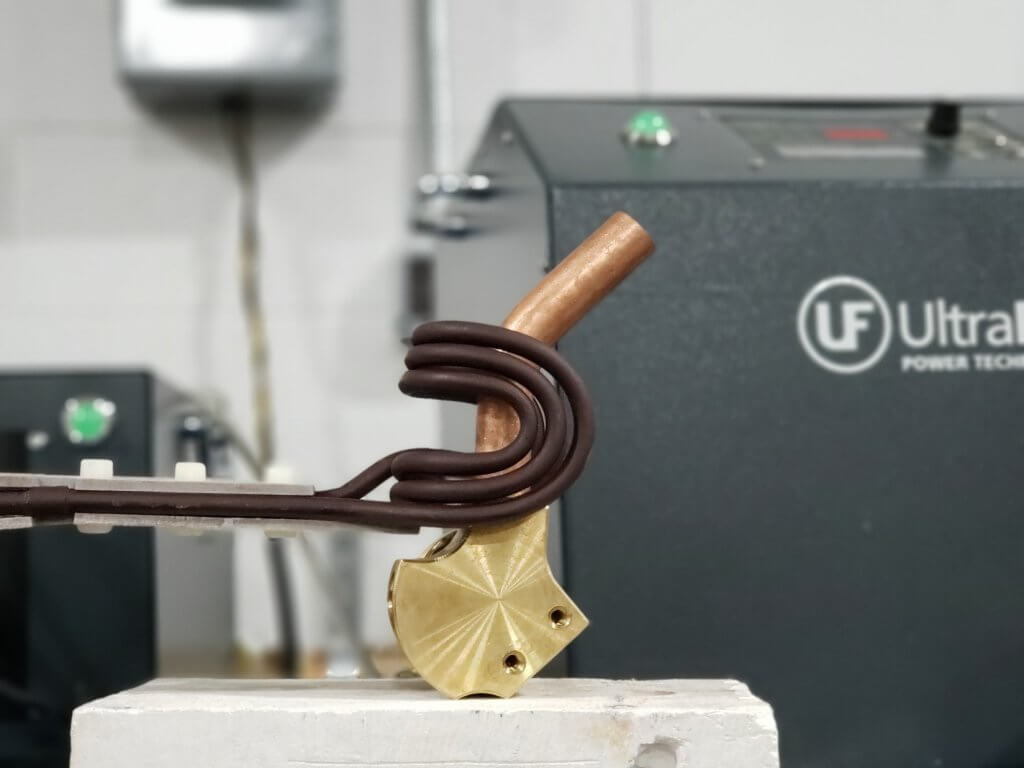

This application request was brought to Ultraflex Power’s attention by a HVAC company. Their goal was to eliminate their current use of the torch method, as well as remove defects and improve the safety for operators. To start the test, our applications engineer assembled the setup of copper tubing and brass valves. After applying flux to each joint the engineer heated them for 20 seconds. Solder was manually applied after the joints reached 932oF (500o C), and created an even solder around the joints.  The use of induction heating was successful in this HVAC application.

Read more about other induction soldering applications here.

To request more information about this particular Application test, please contact us.

Reference Info: Application Note 3463-5975
