Brazing steel tube to steel fitting

Objective
Induction brazing of a steel tube to a steel fitting

Recommended Equipment
The recommended equipment for this application is the
W15/150 & HS8 heat station.

Materials:

Steel tube to steel fitting braze using Lucas-Milhaupt Easy FLO 3 brazing alloy rings
and Harris Black Brazing Flux.

Power: 3.5kW to 5.5kW
Temperature: 1300°F to 1400°F (704°C to 760°C )
Time: 6 to 8 Seconds

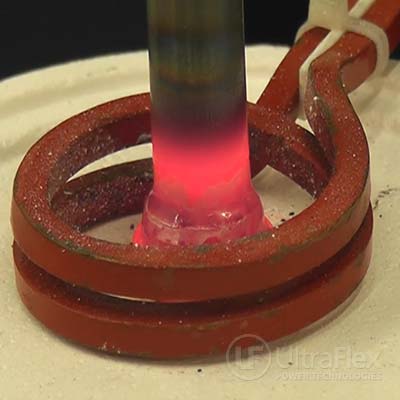

Pictures

Video

Request information or contact us about this application. Reference info: Application Note 3463-5032
