Induction Brazing of Magnetic Steel Mesh Belts

Objective

Brazing two magnetic steel mesh belts to each other using induction heater. Currently torch is used to do the braze. Customer is looking for more repeatable and consistent brazing method. Braze alloy and flux already embedded into the mesh.

Equipment

SM-5/200
HS-4W
Handheld Ubraze

Materials
Magnetic Steel mesh 1” wide x .08” thick x 12’’ heat Length

Power: 5 kW
Temperature: 1250°F (676°C)
Time: 80 seconds to complete the whole cycle

Results and Conclusions:

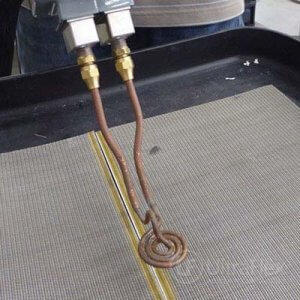

Successful induction brazing of the two mesh belts was achieved using the SM-5 and the U-Braze Handheld system. The process is a very good fit for induction brazing and can be further automated with fixture.
