Objective
Anneal stainless steel piano wire in under 1 second with induction.
Equipment
SM-5/200 Power Supply
HS-4W Heat Station
Test I
Material
Stainless steel
Rectangular wire
0.25’’ (6.35mm) Width
0.04’’(1.01mm) Thickness
3.5’’ (88.9mm)Length
Key Parameters
Power: 5 kW
Temperature: 1300°F (704°C)
Time: 1 sec
Test II
Materials
Stainless steel
Rectangular wire
0.6’’ (15.24mm) Width
0.08’’ (2.03mm) Thickness
1” (25.4mm) Length
Key Parameters
Power: 4.76 kW
Temperature: 1300°F (704°C)
Time: 5 seconds
Results and Conclusions
The stainless steel piano wire was successfully annealed in 1 second. The SM-5 power supply will the meet rate requirements for this and larger piano wires.

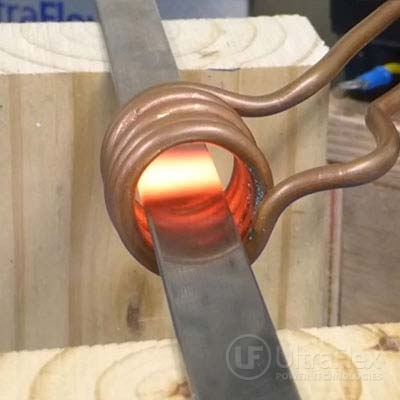

Pictures
Video
Request information or contact us about this application. Reference info: Application Note 3464-5554
