Induction Curing for Bonding of Quartz Chip to a Steel Cylinder

A company in the Automotive industry is looking for an induction heating system that can reach the temperature of 175° C (347°F) and hold it within the tight tolerance of +/- 3 C. Induction heating will heat a steel cylinder to cure an adhesive for bonding of a quartz chip. Induction heating is a preferred method because it provides faster, controlled and more uniform heating.

Industry: Automotive

Equipment: UltraHeat SM 5 kW induction heating system is recommended for this curing application to ramp up and hold the desired temperature.

Process:

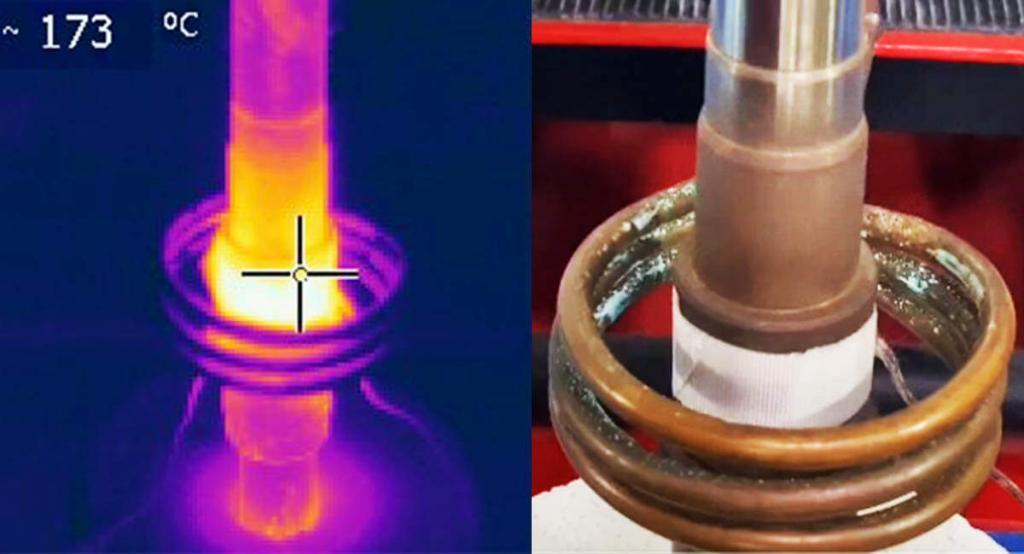

The goal of this induction curing application is to heat two sides of a steel cylinder which is 1.064” (2.70 cm) OD, 7.25” (18.41 cm) long with a 1” (2.54 cm) heat zone up to 175 C (347°F) and hold that temperature for 60 seconds in order to perform bonding application. The desired temperature was reached in 13 seconds. A K-type temperature controller was used to measure the temperature.

temperature increase in induction curing of quartz chip to steel

Benefits:

Induction heating equipment provides the opportunity to define a temperature profile, thus regulating the power and preventing overheating of the parts to be heated.

Read more about other induction curing applications.

To request more information about this particular Application test, please contact us.

Reference Info: Application Note 3463-6752
