Induction Carbide Tipping

Objective
In this application test, induction carbide tipping of steel working head teeth.

Equipment
UPT-W15/150
HS-8 Heat Station
Custom coil


Materials
• Steel working head teeth
• Brazing paste: BrazeTec 5600


Key Parameters
Power: 1.5 kW
Time: 10 seconds

Process:

  1. Brazing paste is put on the tool
  2. The steel working head teeth are attached.
  3. The assembly is positioned in the three-turn coil.
  4. The assembly is heated.
  5. The joint is completed in 10 seconds.

Results/Benefits:

  • Strong durable joints
  • Selective and precise heat zone, resulting in less part distortion and joint stress than welding
  • Less oxidation
  • Faster heating cycles
  • More consistent results and suitability for large volume production
  • Safer than flame brazing

Carbide Tipping is a specific brazing process by which a hardened tip material is applied to a base material to produce an extremely hard cutting edge. When using induction heating, the tipping material is brazed to the base material with temperatures up to 1900F.

Pictures

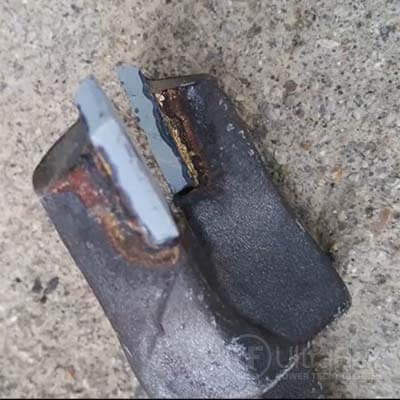

Induction Carbide Tipping
brazing tipping material
brazing Carbide Tipping metal
debraze carbide tip
brazing small parts
