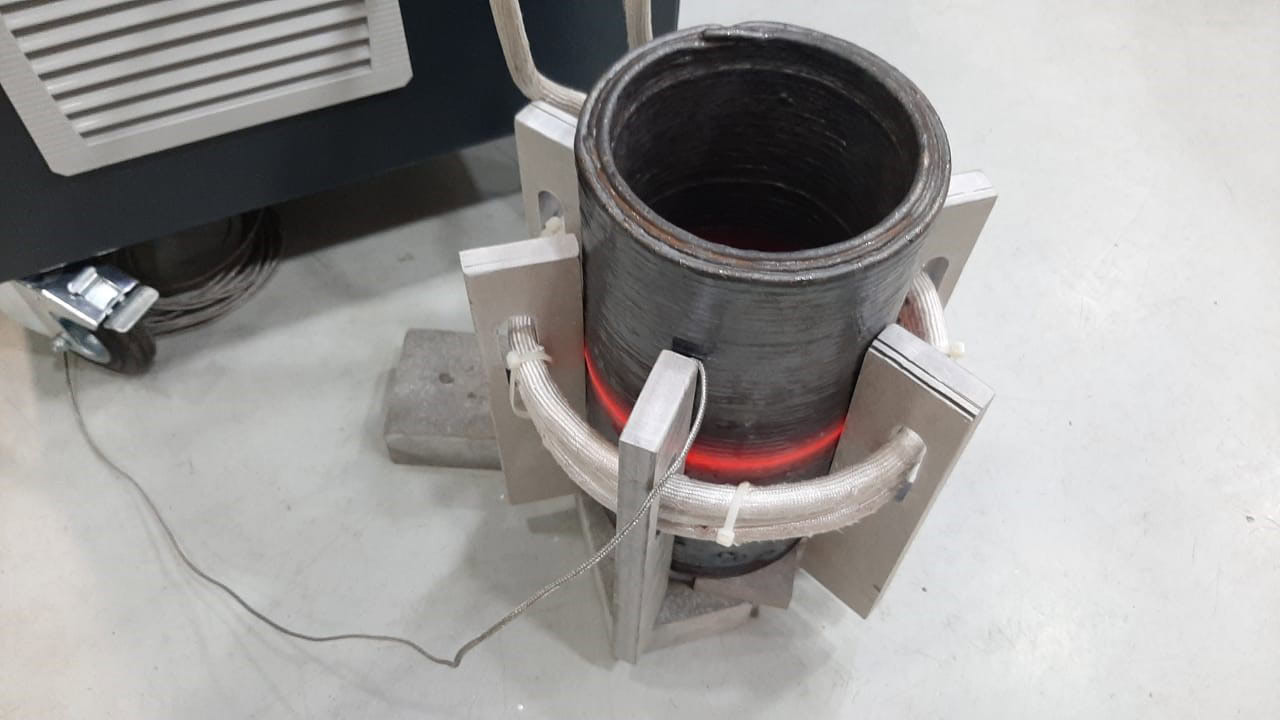

This induction heating application shows the preheating of steel pipe before welding with UltraFlex M-Air 25 (25kW) air-cooled power supply and air-cooled coil.  Inductively preheating of the pipe section to be welded ensures faster welding time and a better quality of the welding joint.

Industry: Manufacturing

Equipment: UltraHeat M-Air or other 25 kW systems

Time: 300 secs.

Temperature: Required from ambient temperature 600 ° C +/- 10 °C  (1112° F/ +/- 50°F)

Materials:

Steel pipe

Details for butt-welded steel pipe:
Total length: 300 mm (11.8 inch)
DIA: 152.40 mm (5.9 inch)
Thickness: 18.26 mm (0.71 inch)
Heating length: 30-45 mm from middle (1.1 – 1.7 inch)

Details for butt welded steel plate.
Total size: 300 mm (11.8 inch) X 300 mm (11.8 inch)
Thickness: 10 mm (0.39 inch)
Heating length: 20-30 mm (0.7-1.1 inch) from middle.

Fixture details for butt welded steel pipe:
Material: Mica.
Total Size: 300 mm (11.8 inch) X 60 mm (2.3 inch)
Thickness: 20 mm (0.7 inch)
Withstands temperature of 900 °C (1652°F)

Process:

We are using our mobile air-cooled M-Air 12kW (25kW systems can also be used) which allows to easily move the system and the heating coil to various welding locations, without the need to provide additional water cooling systems or hoses.

Induction heating provides consistent heat throughout the process. The preheat temperatures can be easily measured with temeperature monitoring tools. The induction heating method is very efficient because it  minimizes the heat loss that often occurs during other heating methods.

Read more about other induction prehating applications here.

To request more information about this particular application test, please contact us.
