Objective :

A leading manufacturer of CBN and PCD cutting tools wants to increase their productivity by focusing heat on a very small areain order to decrease heat loss and improve carbide tipping process. 

Process:

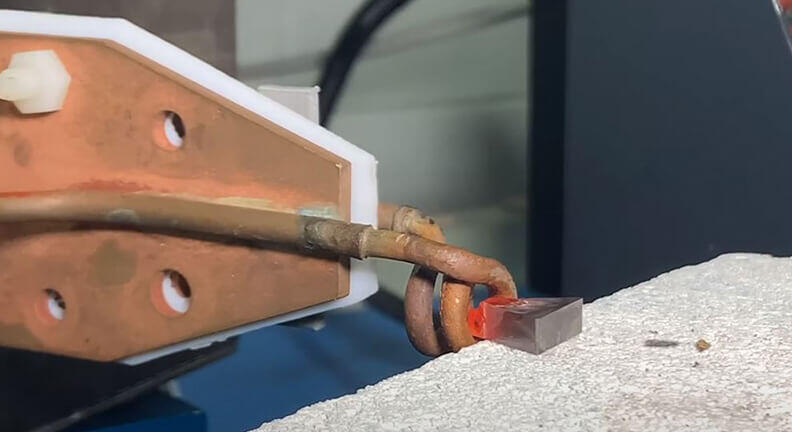

The customer provided a triangle steel body, each side ~16.5 mm (0.65 inches). The induction carbide tipping must be performed on a 3 mm (0.11 inches) equilateral triangle on the edge. The heating zone of the tool steel body is 43 mm (1.69 inches) OD x 25 mm (0.98 inches) in length.  UltraHeat SM – 5 kW induction heating system was utilized to reach 1600 °F (870 °C) and complete the process in 8 seconds. A custom-designed coil concentrated the heat in the carbide tipping zone and minimized cycle time.

Equipment:

UltraHeat SM – 5 kW induction heating system with a custom-designedbrazing coil was used to fit the process requirements. 

Industry:Tools & Equipment 

Read more about other carbide tipping applications.  

To request more information about thisApplicationtestpleasecontact us.

Reference InfoApplication Note 3463-6570 
