Objective
Preheating piece of glass up to over 1472°F (800°C) using a graphite susceptor in under 40 sec in order to be hot formed.
Equipment
SuperCast J5
Materials
• 10mm quartz glass rod
• Glass samples from customer
Key Parameters – Test 1: Quartz Glass Rod
Power: 5kW
Time: 100 sec
Temperature: over 3632°F (2000°C)
Key Parameters – Test 2: Glass Samples from Customer
Power: 5kW
Time: 40 sec
Temperature: over 1472°F (800°C)
Process:
- Cover graphite crucible with ZiO paint.

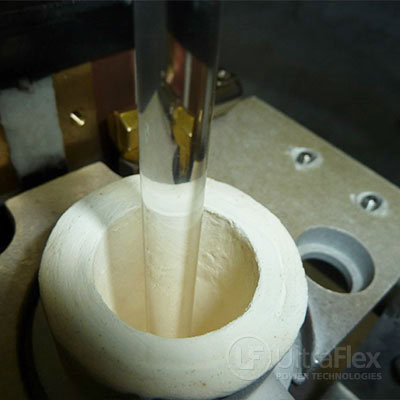

- Place the glass sample inside of the crucible. Due to their size, the customer samples were placed over the crucible.
- Start induction heating at 100% power set point ( 5kW).
Results/Benefits:
Induction heating provides:
- Faster heating cycles
- More consistent results and suitability for large volume production, without the need for batch processing
- Technology without pollution, which is clean and safe
Pictures
Request information or contact us about this application. Reference info: Application Note 3463-3792
