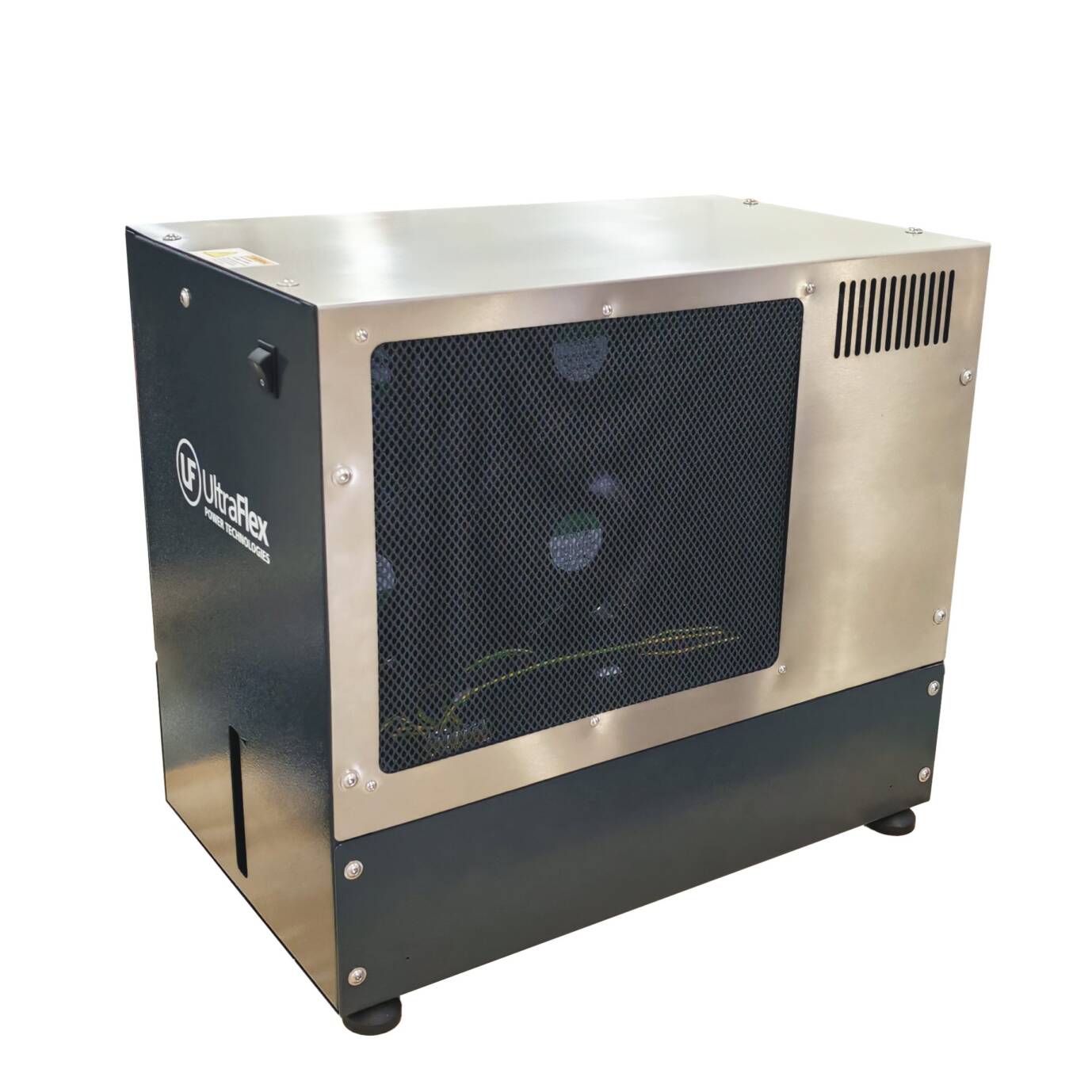

Cooling System WCA-1800
The WCA-1800 is a compact 5.5 kW closed-loop, water-to-air cooler engineered for continuous operation with UltraFlex induction heating power supplies. It combines a high-pressure pump, a large-surface air-to-water heat exchanger, and four high-efficiency fans in a small footprint, keeping coolant temperature stable during high-power thermal loads. The non-ferrous fluid circuit, translucent 18 L polypropylene tank, and polyamide plumbing rated to 9 bar (130 PSI) deliver clean, low-maintenance performance on a standard 230 VAC, single-phase, 50/60 Hz supply.
Features
- Designed and tested for operation with a wide range of induction heating power supplies
- Closed‑loop water cooling system with high‑pressure pump and air‑to‑water heat exchanger
- Low‑noise operation enabled by optimized fan airflow and pump selection
- Translucent polypropylene coolant tank with visible water level from both sides
- Convenient back-mounted filling spout
- Non‑ferrous fluid circuit eliminates electrolyte‑induced contamination
- 9 bar (130 PSI), 12/10 Polyamide PA12 hose
- Factory‑set coolant flow rate optimized for induction heating applications
- Simple, reliable architecture for minimal maintenance
Benefits
- Reduced footprint: more compact overall dimensions
- Larger heat exchanger: increased surface area for improved heat dissipation
- Four high‑efficiency cooling fans for faster heat exchange and improved temperature recovery
- Higher continuous cooling capacity optimized for modern induction heating workloads
- Maintains stable coolant temperature during continuous induction heating operation
- Faster cooldown and recovery after high‑power thermal loads
- Compact design saves valuable floor space
- Reliable thermal performance with minimal operator intervention
|
WCA-1800 (1ACC-900-200-00) Cooling Unit, Water-to-Air, 5.5 kW, 18,800 BTU, 230V, 1ph, 50/60 Hz |
|
| AC Voltage Range |
230 VAC ±10% |
| AC Line Phases |
1 ph |
| AC Line Frequency |
50 / 60 Hz |
| Input Current |
2 A (rms) |
| Input Power |
0.56 kVA |
| Cooling Capacity (25°C ambient) |
5.5 kW (18,800 BTU) |
| Operating pressure |
6 bar (87 PSI) |
| Coolant flow rate at 6 bar output pressure |
5 LPM (1.32 GPM) |
| Ambient operating temperature range |
0 – 40 °C (32 – 104 °F) |
| Cooling Method |
Water-to-Air |
| Cooling Input/Output connection |
G 1/2″ |
| Coolant tank capacity |
18 L (4.75 GAL) |
| Water tank fill input |
G 1/2″ |
| Dimensions mm (Inch) WxDxH |
342 x 608 x 493 13.5 x 23.9 x 19.4 |
| Operating Weight with full tank kg (lb) |
57 (125.7) |

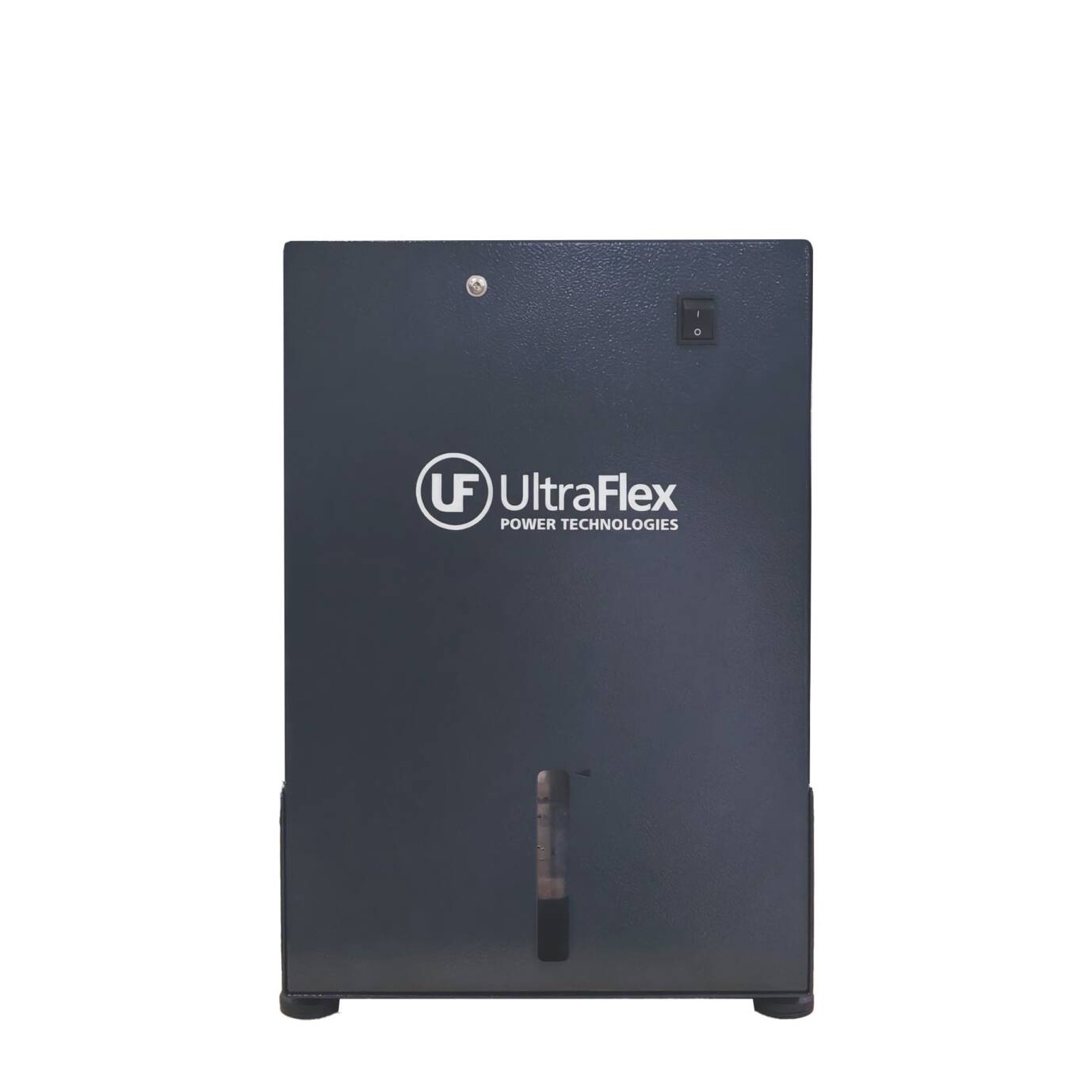

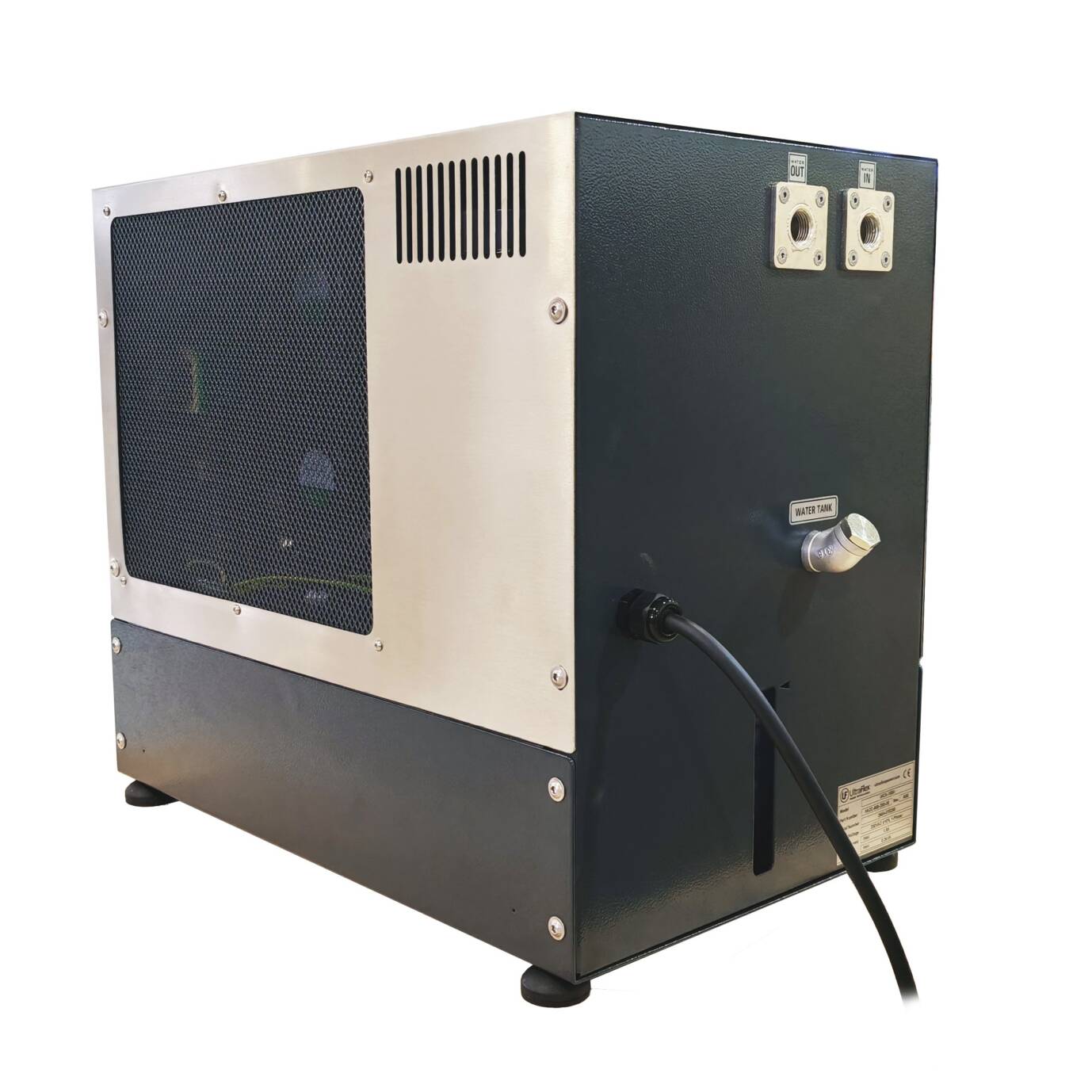

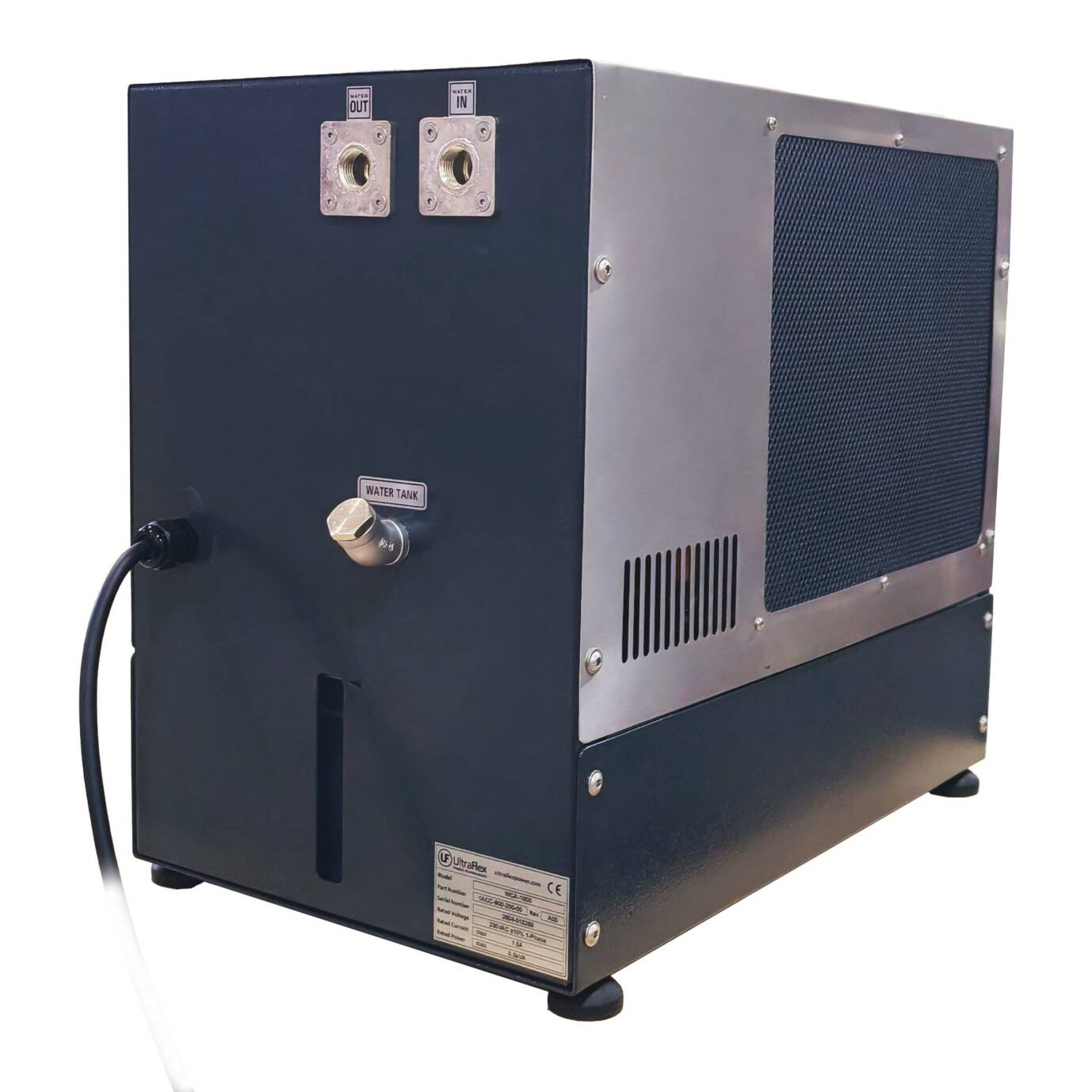

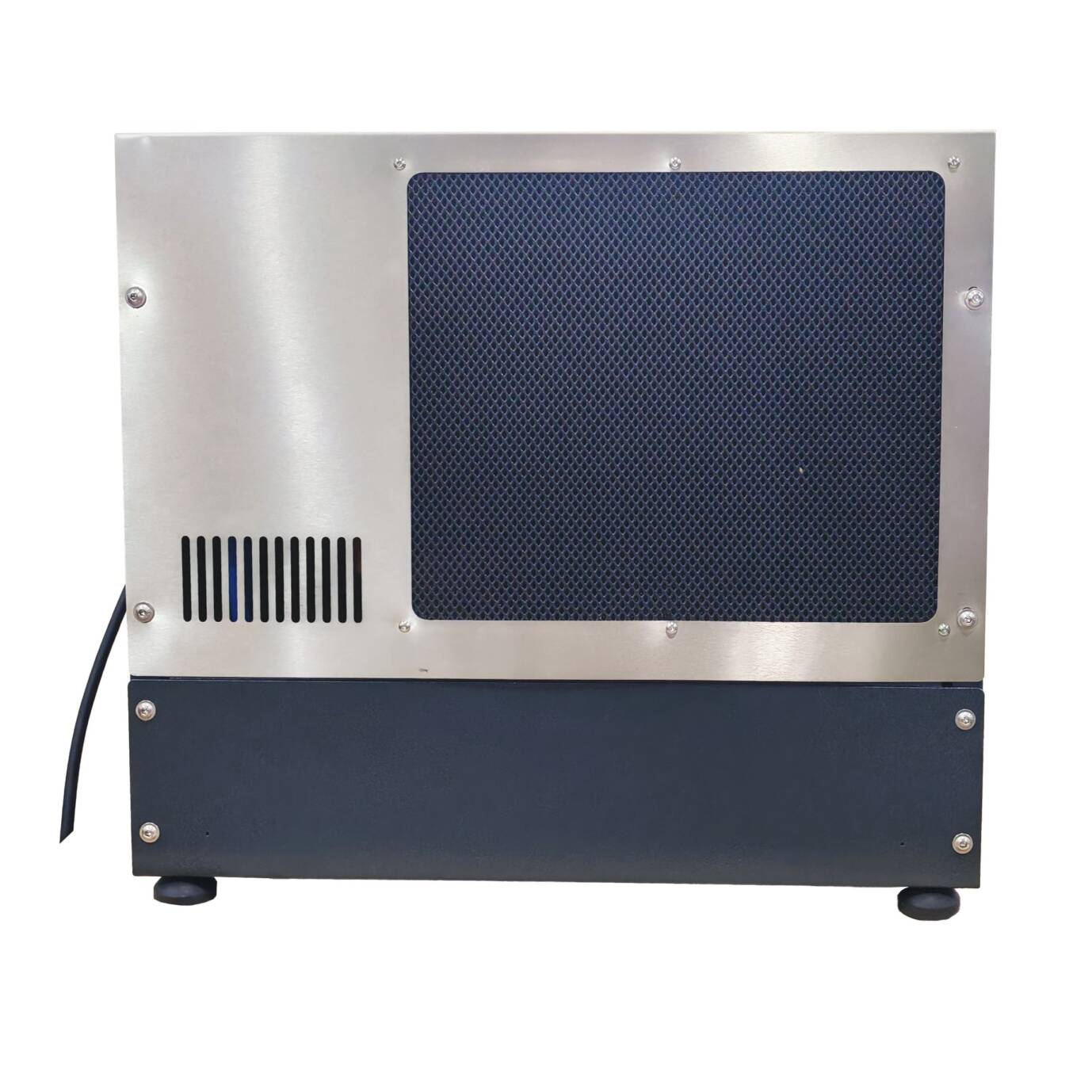

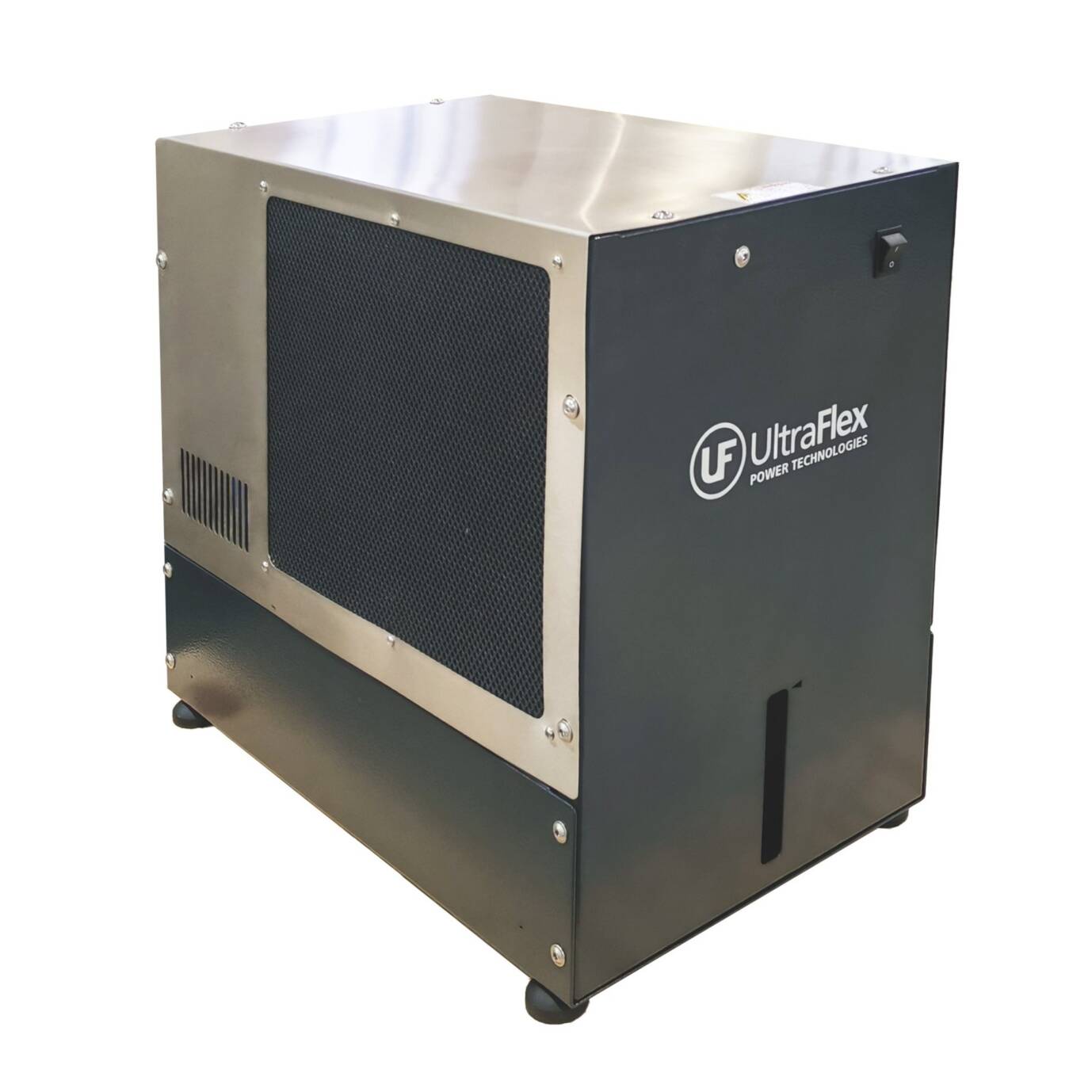

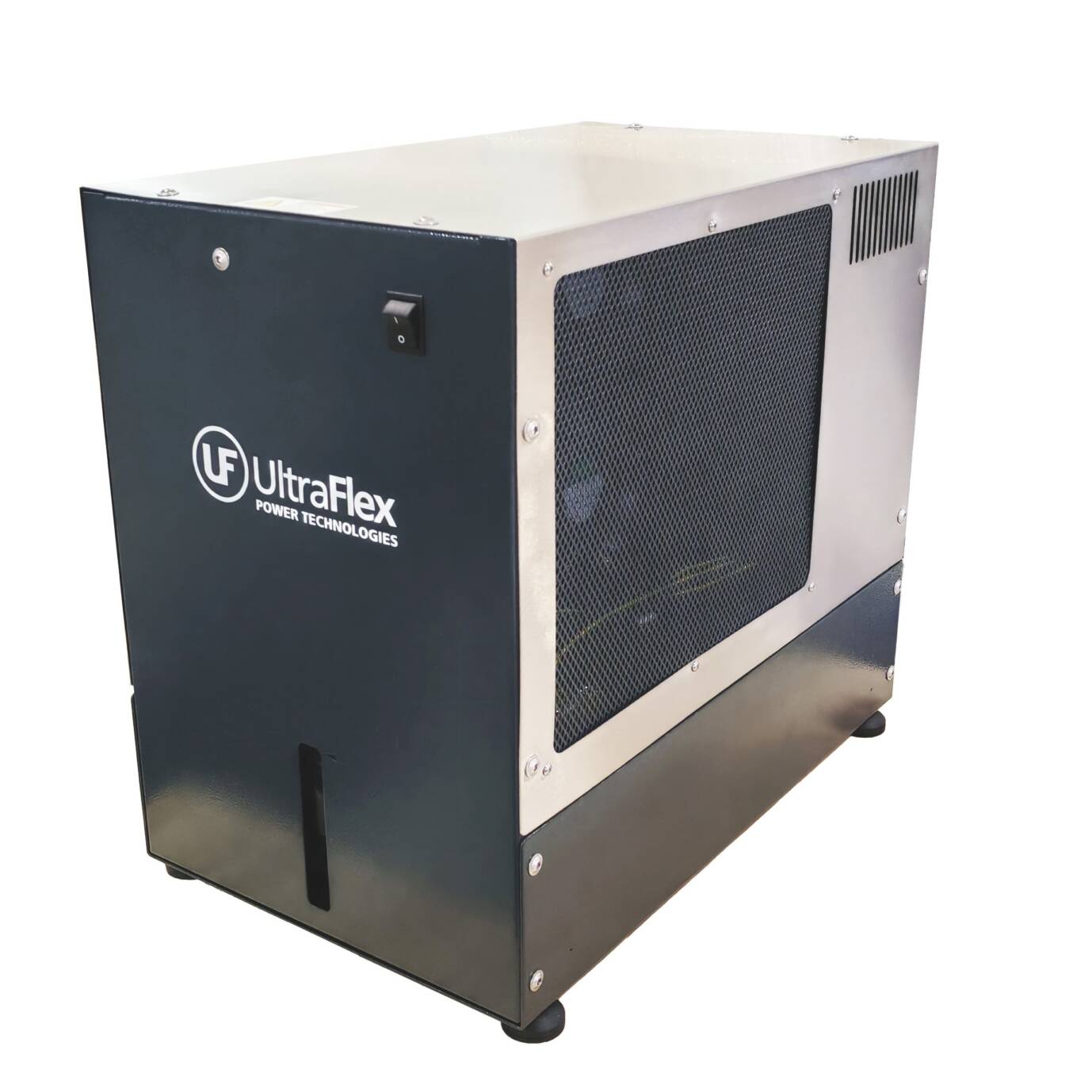

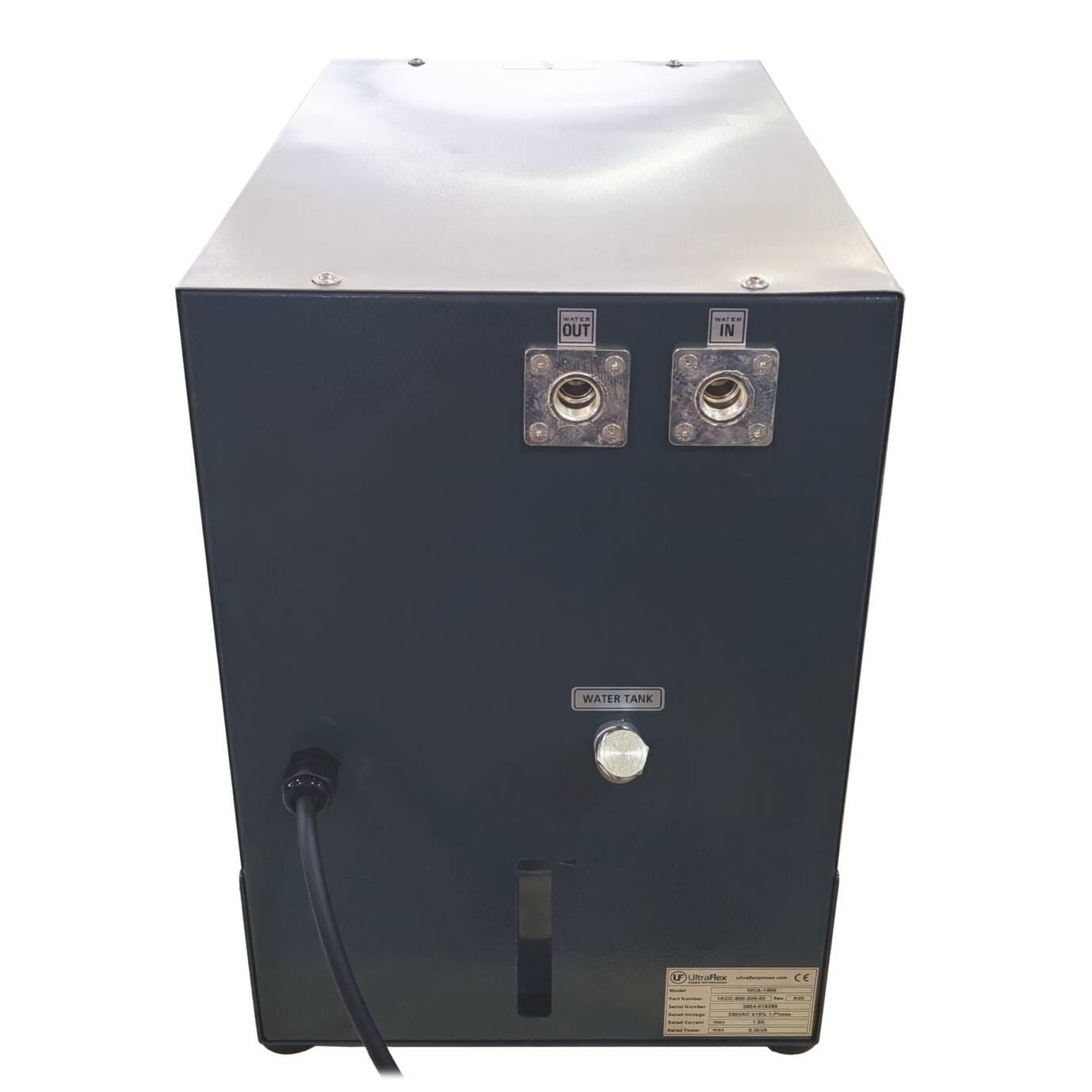

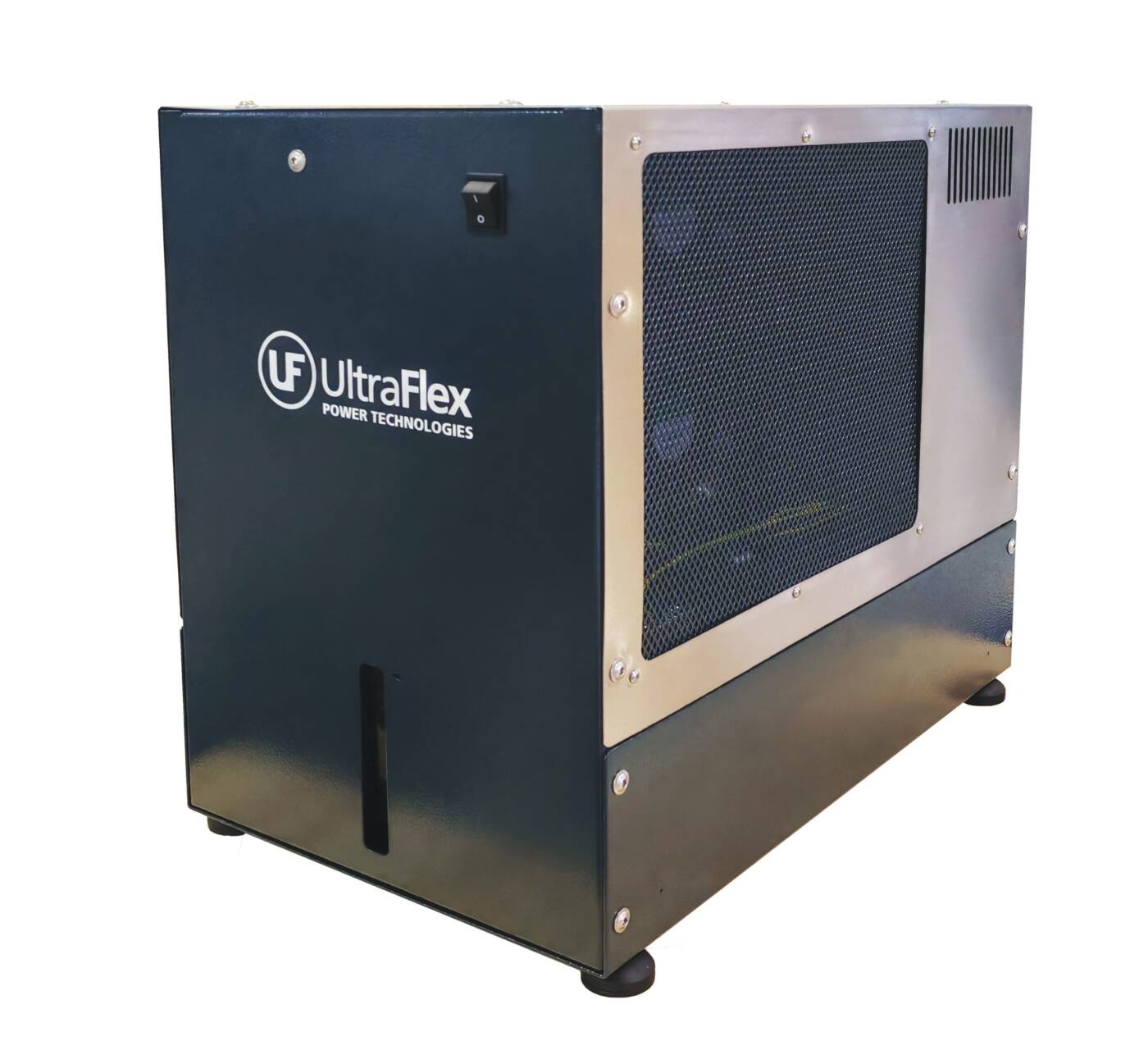

Pictures
