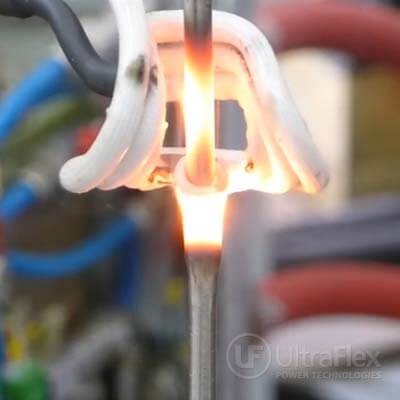

Brazing of two aluminum pipes together

Objective

Induction brazing of two steel pipes

Equipment
UBraze 15

Materials
Flared at interface 0.25” (6.35mm)
Brazed to steel tube 0.19” OD (4.82mm)

Power: 4 kW
Temperature: 1600°F (871°C)
Time: 5 sec

Results and Conclusions:

Induction heating provides:

  • Strong durable joints
  • Selective and precise heat zone, resulting in less part distortion and joint stress than welding
  • More consistent results and suitability for large volume production, without the need for batch processing
  • Safer than flame brazing

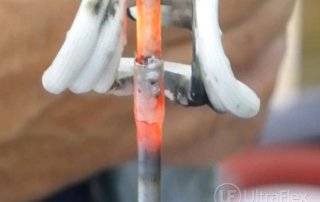

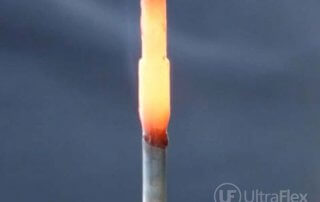

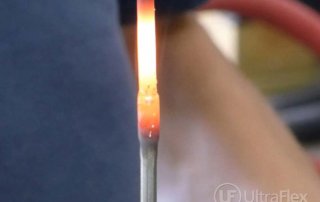

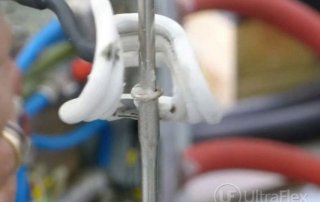

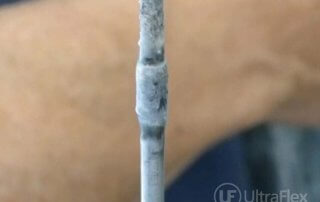

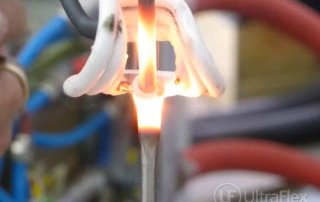

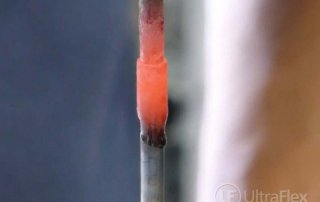

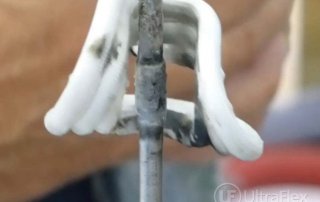

Pictures

Video

Request information or contact us about this application. Reference info: Application Note 3463-4774
