The goal of this induction brazing application test is to heat an inconel blade up to 1000°C in less than 30 secs.

Industry: Academic & Research

Equipment:  SB-3/1200, HSB-3

Time: 30 secs.

Materials:

Inconel blade

Power: 1.65kW

Process:

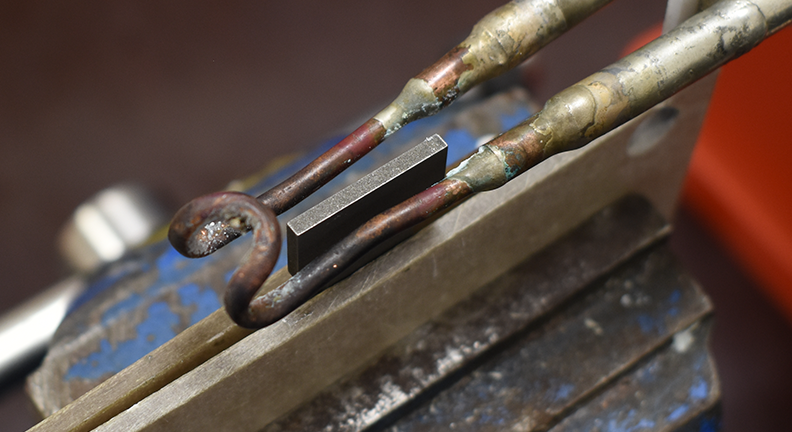

We are preheating only the first 2mm of the Inconel platе used in academic research with UltraFlex high-frequency induction heating equipment – UltraHeat SB. Our system enables controlled and localized heating of small size parts. With it, the Inconel blade workpiece is successfully preheated for about 2-3 seconds or less. The fast heating process provides targeted heat and prevents damage of the whole workpiece.

TIP: A longer coil profile can be used for more uniform heating.

Read more about other induction preheating applications.

To request more information about this particular application test, please contact us.

Reference Info: Application Note 3464-5978
