Brazing copper to copper with induction

Objective

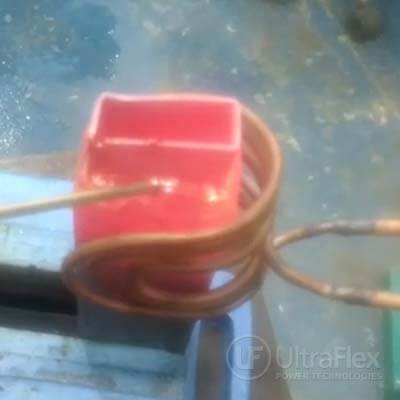

Brazing of a copper section to 2012˚F (1100˚C) in 4 minutes using induction heating

Recommended Equipment
The recommended equipment for this application is the
UPT-W10 & HS-8 heat station.

Materials:

  • Copper section: 0.55” thick x 1.97” long x 1.18” wide x 0.2” long (14 mm thick & 50 mm long x 30 mm wide x 5 mm long)
  • Copper spacer: 0.55” thick x 1.57” long x 0.79” wide x 0.08” long (14 mm thick & 40 mm long x 20 mm wide x 2 mm long)
  • Brazing alloy: 5% silver brazing rod

Power: Up to 10 kW
Temperature: 2012˚F (1100˚C)
Time: 4 minutes

Pictures

Video

Request information or contact us about this application. Reference info: Application Note 3463-5067
